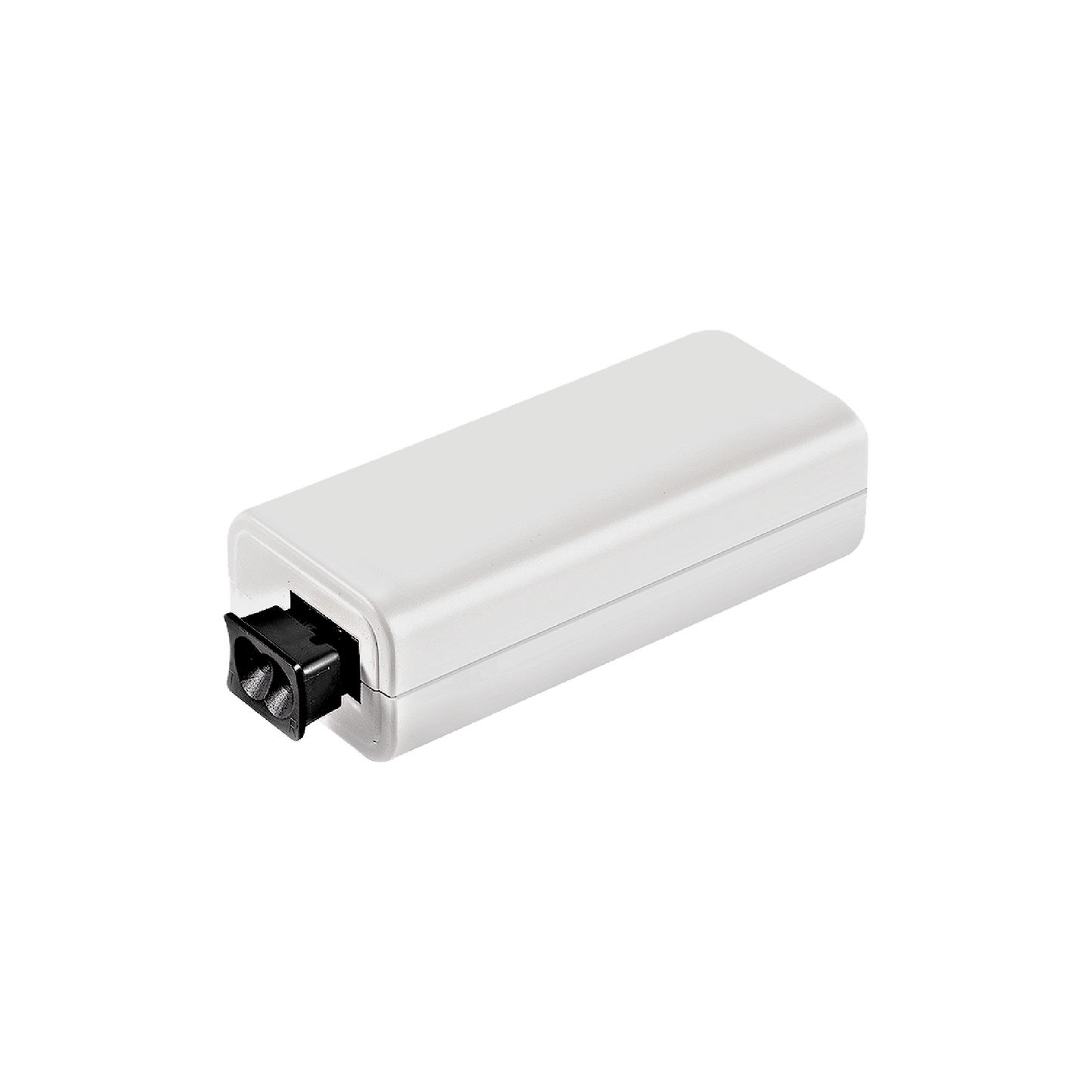

1G Media Converter

1G Media Converter

1000Base-T UTP to SI-POF Media Converter: Delivering Gigabit speeds over Step-Index Plastic Optical Fiber for high-performance networking.

If your delivery address is outside of Taiwan, we will quote you additional shipping costs.



$3,040.00 TWD
$3,040.00 TWD
Sale Sold out
Taxes included.
Transmission speed

Stock: 6 in stock

Delivery Time

By request

General Specifications

• The Giga Media Converter for SI-POF bridges 1000Base-T UTP and 1000HS-Base-P (650nm) Step Index Plastic Optical Fiber.
• This plug-and-play solution requires no additional configuration and utilizes a specialized design to deliver full 1000Mbps throughput on the optical side.
• Fully compatible with IEEE 802.3ab Gigabit Ethernet and 802.3 HS-Base-P standards, it is an ideal solution for LAN, FTTH, or xDSL applications.

View full details

Product Features and Specifications

Features

1. High-speed gigabit transmission

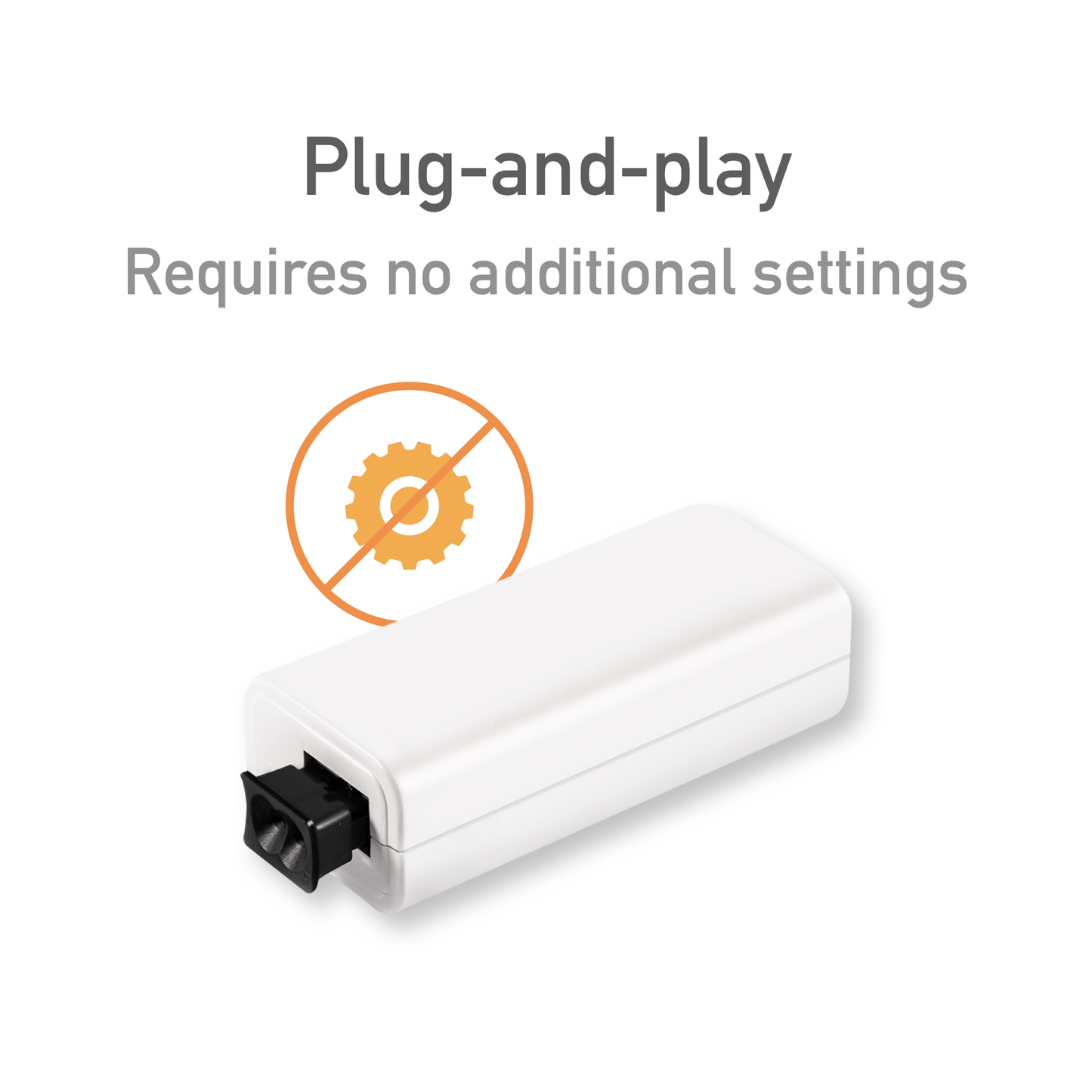

2. Plug and Play
3. Supports long-distance transmission: up to 40m for optical fiber and 100m for RJ45 copper cable
4. Plastic Optical Fiber (POF) provides anti-interference and electrical isolation, suitable for industrial environments
5. Lightweight design with low power consumption
6. LED indicators for power and link status to easily confirm on-site conditions
7. Complies with FCC and CE standards

Specifications

Parameter Optical Port Electrical Port
Standard Compatibility 1000 HS-Base-P, 650nm 1000 Base-T
Data Rate 1000 Mbps 1000 Mbps
Transmitting Length 40M Max. at SI-POF interface 100M Max. at copper interface
Interface Connector POF transceiver RJ45 connector
Equipped Cable POF patch cord 4 pairs Cat.5e/Cat.6 UTP patch cord
Transmit Throughput 1000Mbps
LED Indication Power status, POF/UTP port link/active status
Operating Environment 1. Temperature: 0~45 °C
2. Humidity: 10%~85%
Storage Environment 1. Temperature: -40~70 °C
2. Humidity: 10%~85% (Non-condensing)
Operating Power 5V @ 1.2A Max.
Power Consumption 1.3 W Max.
DC Power Connector OD: 4, ID: 1.1 mm DC plug suitable
Dimensions W x D x H 32.7mm x 78.9mm x 23mm
Weight 30g
EMC Certification 1. FCC certification: Part 15 Subpart B
2. CE certification: EN55022/ 55024/ 61000/ 62471

Applications

1. Home Networking
2. Surveillance and Industrial Camera Systems (IP Camera / Industrial Camera)
3. VoIP and Smart Communication Equipment (IP Phone / Intercom)
4. Digital Home Entertainment Systems (IPTV / Set-top Box)
5. Smart Home and Internet of Things (Smart Home / IoT)

Dimension
