POF Managed Switch
POF Managed Switch
Customized POF switch can be configured with Gigabit Ethernet ports or POF (Plastic Optical Fiber) transceivers. It fully supports flow control in full-duplex mode and high-speed data transmission via plastic optical fiber interfaces.
The unit features integrated LED indicators to monitor the activity status of each port. Supports both plug-and-play operation (default) and advanced Layer 2 management.
Supports IEEE 802.3 Ethernet protocol over POF interfaces. This solution is ideal for industrial Ethernet, in-vehicle networks, and high-EMI environments.

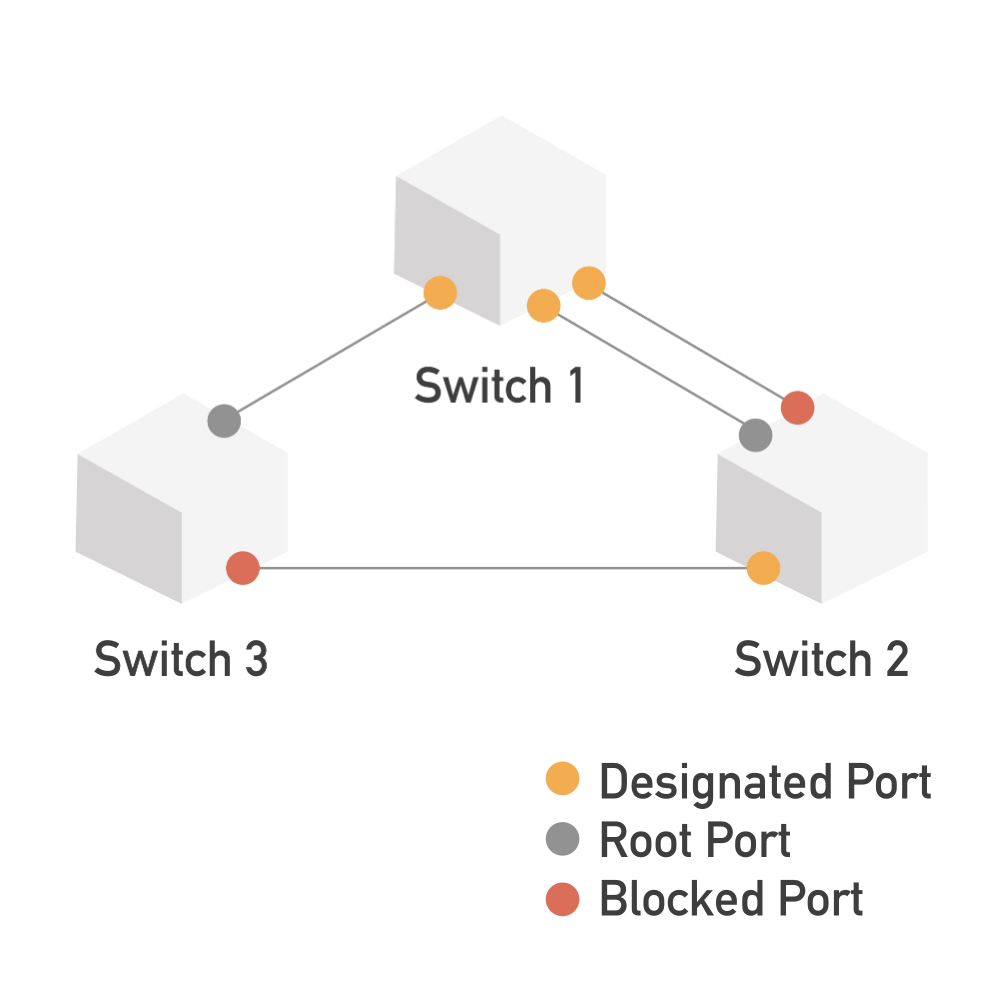

Figure 1 (STP Topology) : Illustrates how the switch automatically blocks loop paths through the Spanning Tree Protocol.

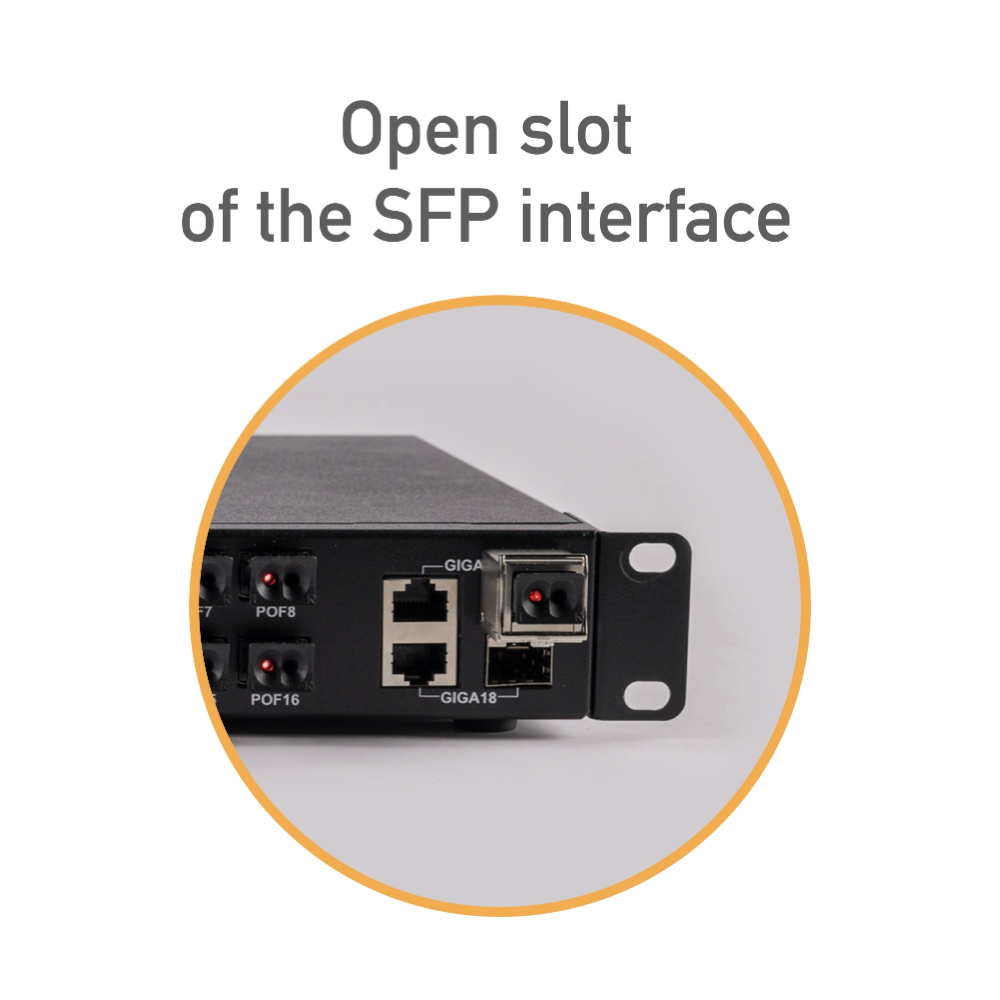

Figure 2 (SFP Interface) : Shows that the switch is equipped with pluggable Small Form-factor Pluggable (SFP) ports, supporting flexible fiber optic expansion.
Click the button below for product inquiries or to order now.
Delivery Time
Delivery Time
By request
General Specifications
General Specifications
Customization is available based on specific requirements. The following product features and application of "24 X POF ports switch" are provided as a reference example.
Share
Product Features and Specifications
Features
24 X POF Ports Switch (Plastic Optical Fiber Interfaces)
1. Ideal for high-EMI environments and long-distance cabling applications.
• Standard: 100 Mbps POF ports
• Optional: Custom 1Gbps POF solution
2. Hybrid Uplink Design (Copper + SFP Flexible Uplink Options)
Provides:
• 2 x 10/100/1000 RJ45 ports
• 2 x 100/1000 SFP ports with DDM support
Enables flexible integration with existing network infrastructures.
3. Industrial-Grade Reliability
• Operating Temperature: -20°C to 60°C
• Fanless design
• IP30-rated enclosure
• Dual power input
4. High-Performance Switching Architecture
• Switching Fabric: 8.8 Gbps
• MAC Table: 16K entries
• Packet Buffer: 4 Mbits
5. Comprehensive Layer 2 Management
• Fully supports enterprise-grade network management functions, including SNMP, CLI, Web, and Telnet.

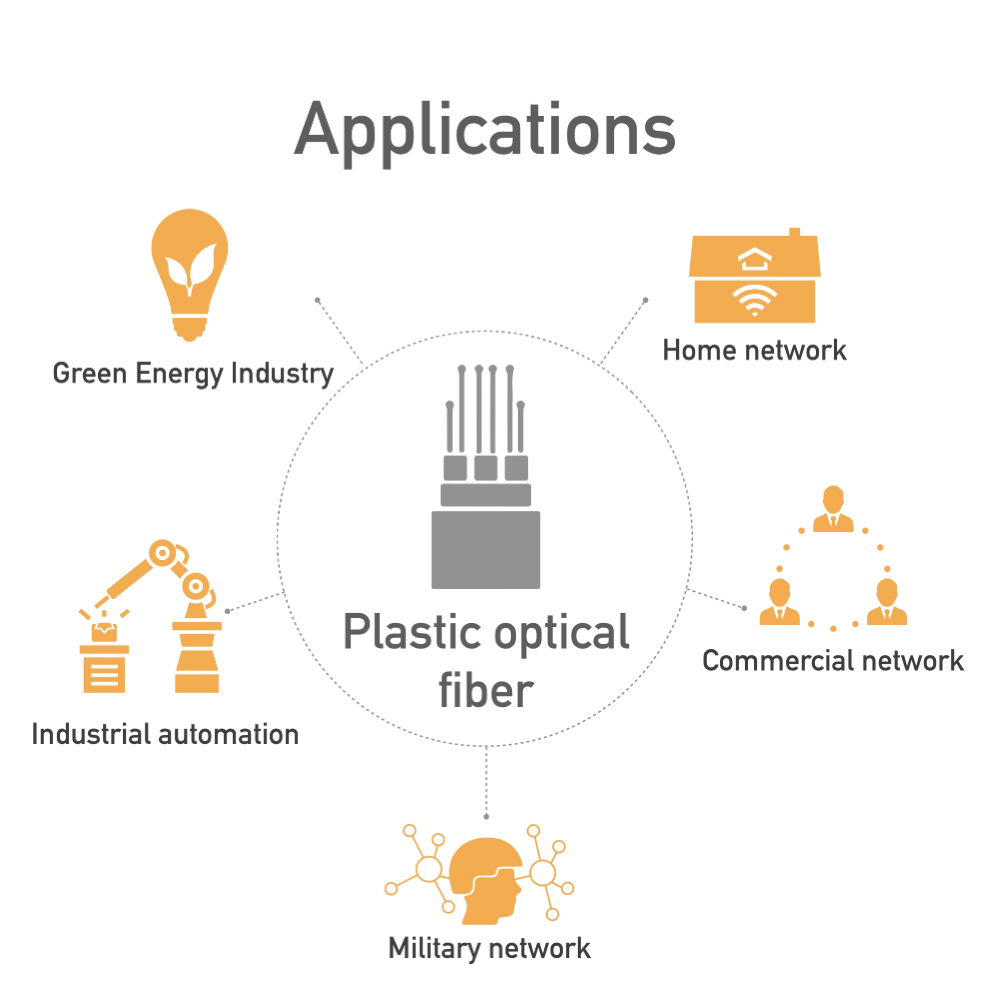

Application
Highly resistant to electromagnetic interference (EMI), making it ideal for:
• Home Network
• Commerical Network
• Green Energy Industry
• Factory Automation
• In-vehicle / Railway Applications
• Military-grade / High-noise Environments
