Customized Selection – GigE Vision – Cat.5e RJ45 to RJ45 Straight

Customized Selection – GigE Vision – Cat.5e RJ45 to RJ45 Straight

Provides stable and cost-effective data transmission for general machine vision, industrial cameras, equipment networking, and automated production lines.


Available Connector Configurations:
•  RJ45 to RJ45

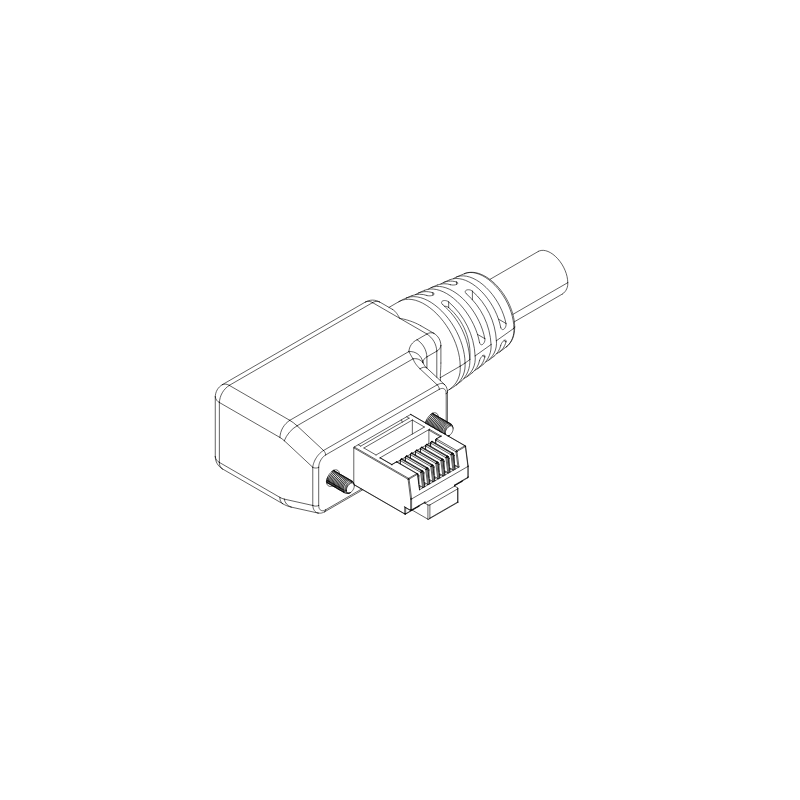

•  RJ45 to Screw-Locking RJ45
•  Screw-Locking RJ45 to RJ45
•  Screw-Locking RJ45 to Screw-Locking RJ45

Available Cable Types:
•  High-End Static Cable
•  High-Flex Cable


Select this product directly through the “Custom Cable Assembly - Online Selection Service”.

GET 10% OFF custom cable assemblies.


Click the button below to place your order.

Delivery Time

By request

General Specifications

1. Transmission Specifications
Complies with Cat.5e standards and supports high-speed Gigabit Ethernet transmission at up to 1 Gbps.

2. Connector
• Interface Type: RJ45 (8P8C)
• Exposed RJ45 Plug Length: 10.2 mm

3. Cable
• Outer Diameter: 6.5 mm for static cable; 6.8 mm for high-flex cable
• Color: Black
• Jacket Material: PVC
• Assembly Method: PVC overmolding on connectors at both ends
• Available Lengths: 1–10 m

4. Compliance
• RoHS compliant
• Cable and connector materials meet the UL 94 V-1 flammability rating
• REACH compliant

查看完整資訊

Product Features and Specifications

Features

1. Locking Mechanism
RJ45 connectors are available with latch or screw-locking options, providing a more secure and vibration-resistant connection in dynamic operating environments.

2. Supports stable long-distance transmission. For cable lengths exceeding 10 m, please get in touch with us for further information.

3. Compatible Devices
Routers, network switches, computers, network-attached storage (NAS), and industrial PCs (IPCs).

4. Compatible Cameras
Basler ace series and Hikrobot MV-CA series.

Applications

1. Office Network Cabling
2. Home Networks
3. CCTV Surveillance Systems
