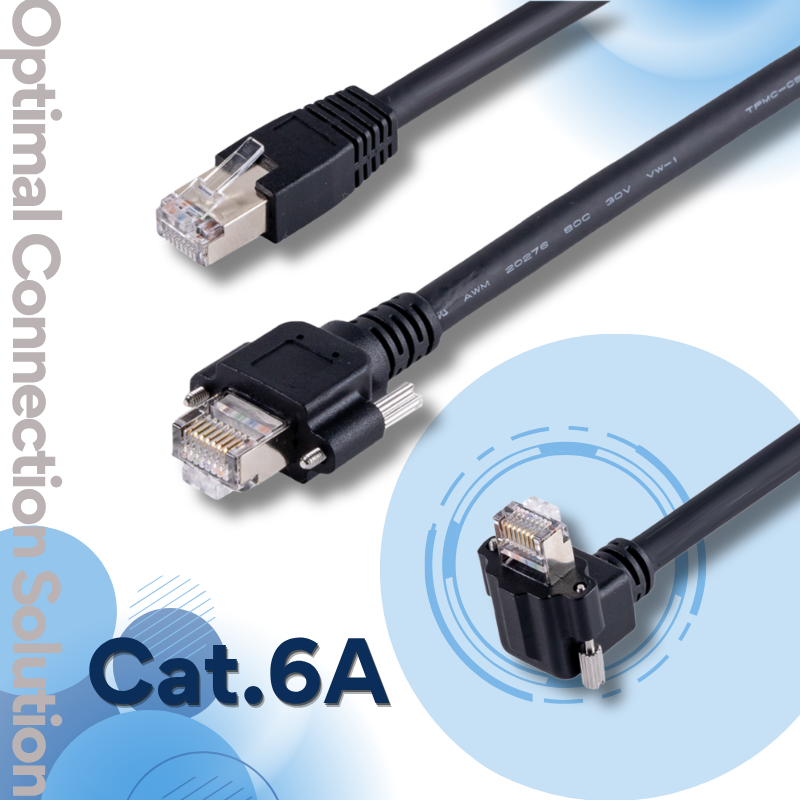

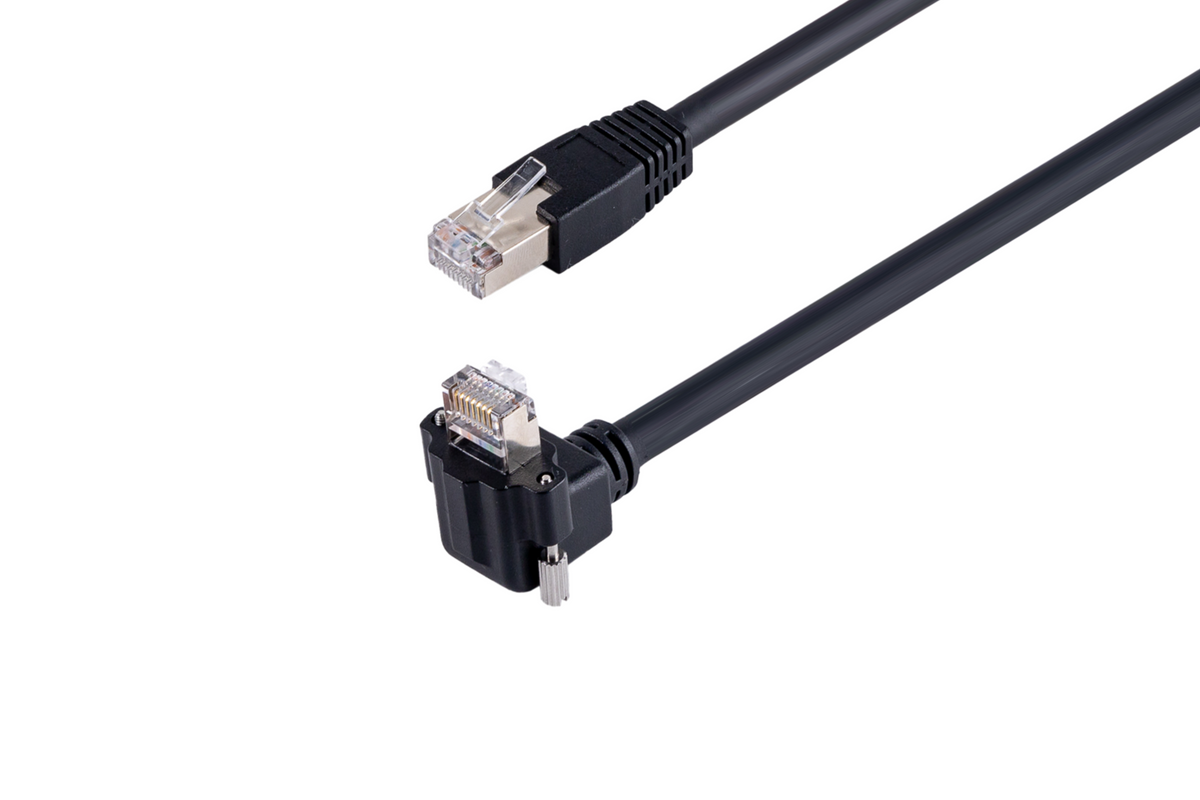

GigE Cat.6A RJ45 Cable

GigE Cat.6A RJ45 Cable

Supports higher bandwidth and high-speed data transmission, making it ideal for GigE Vision, Industrial Ethernet, automated optical inspection (AOI), and high-resolution image transmission applications.

Cat.6A is better suited for equipment environments that require higher transmission performance and greater stability.


Available Connector:

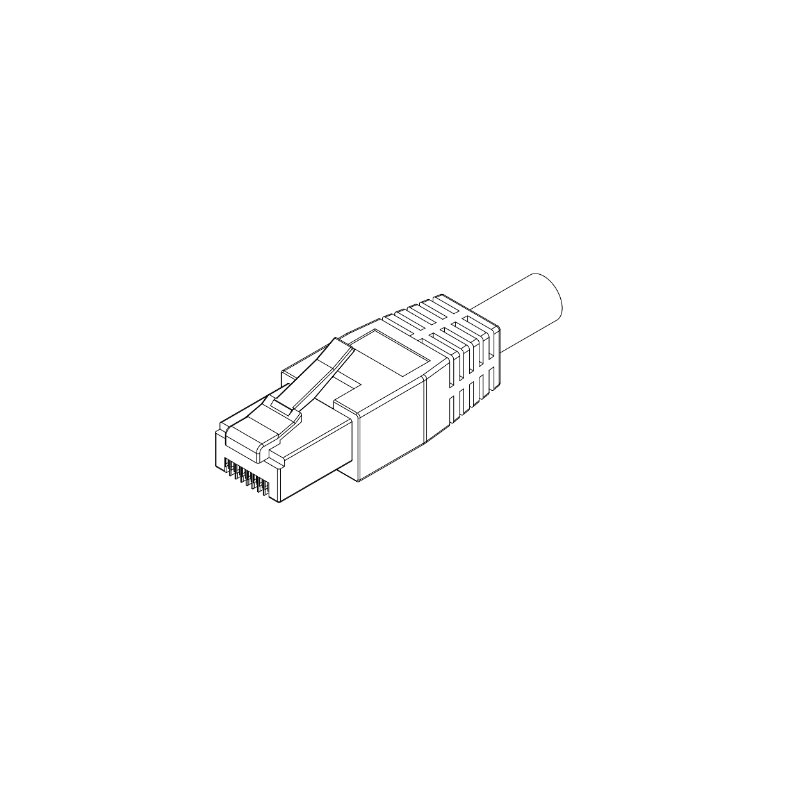

•  RJ45

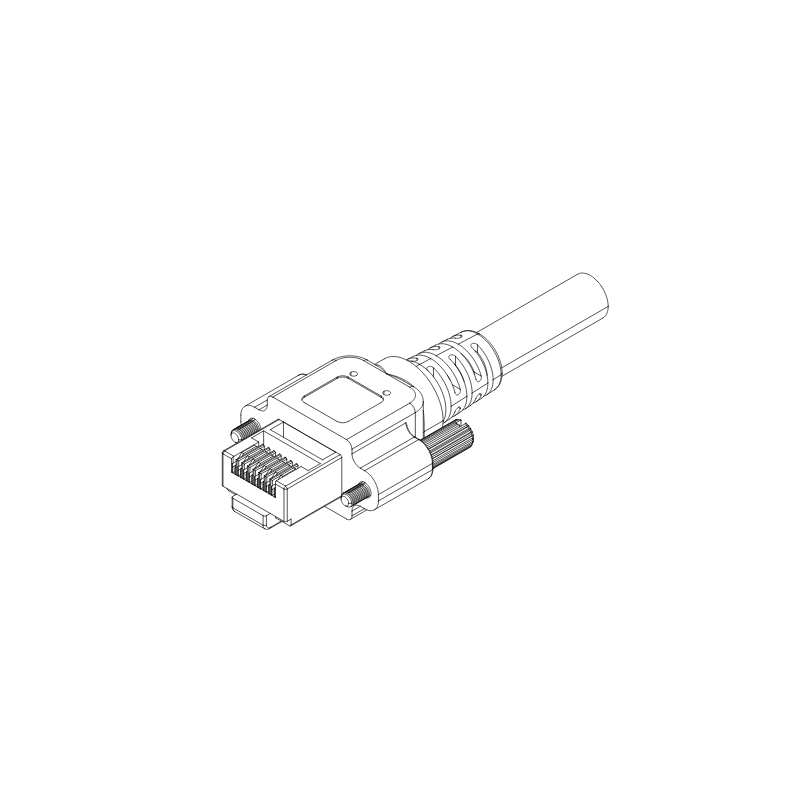

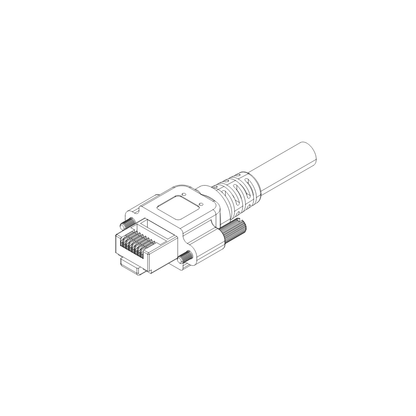

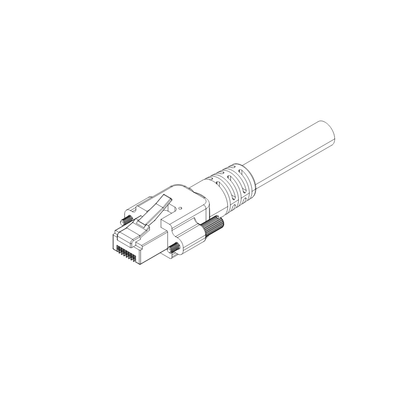

•  RJ45 with Screws

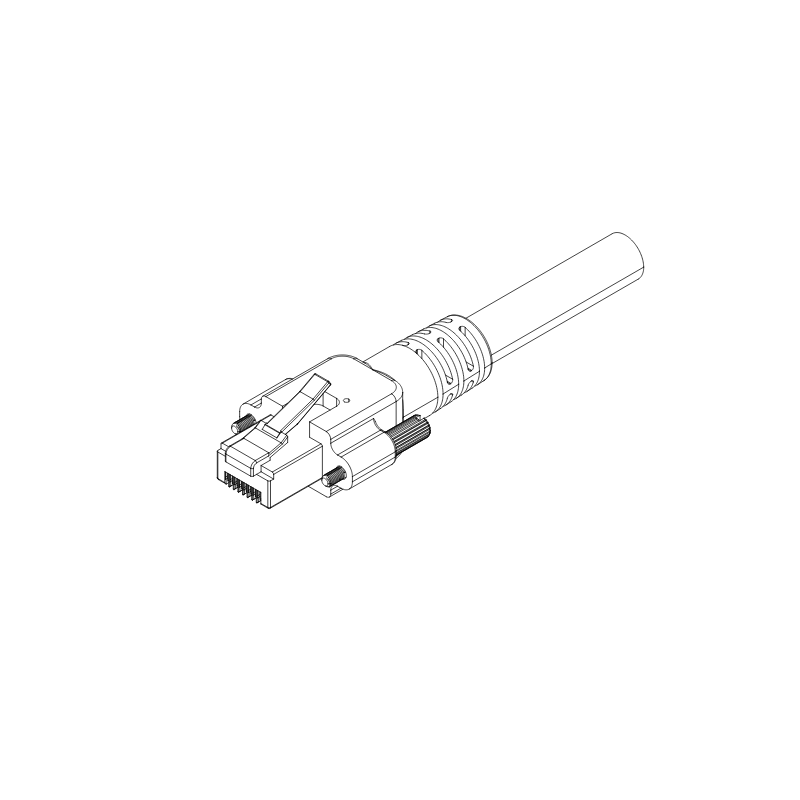

•  RJ45 with Screws & Latch

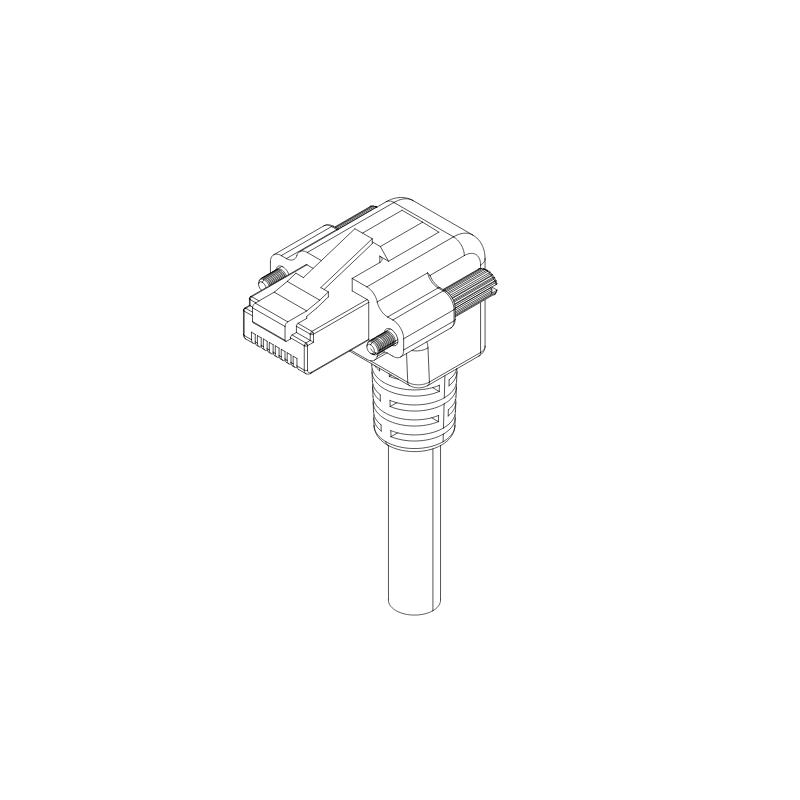

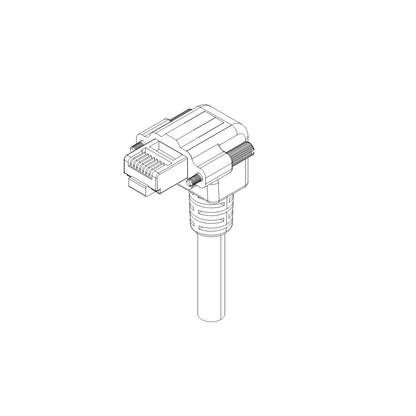

•  RJ45 Up Angle with Screws

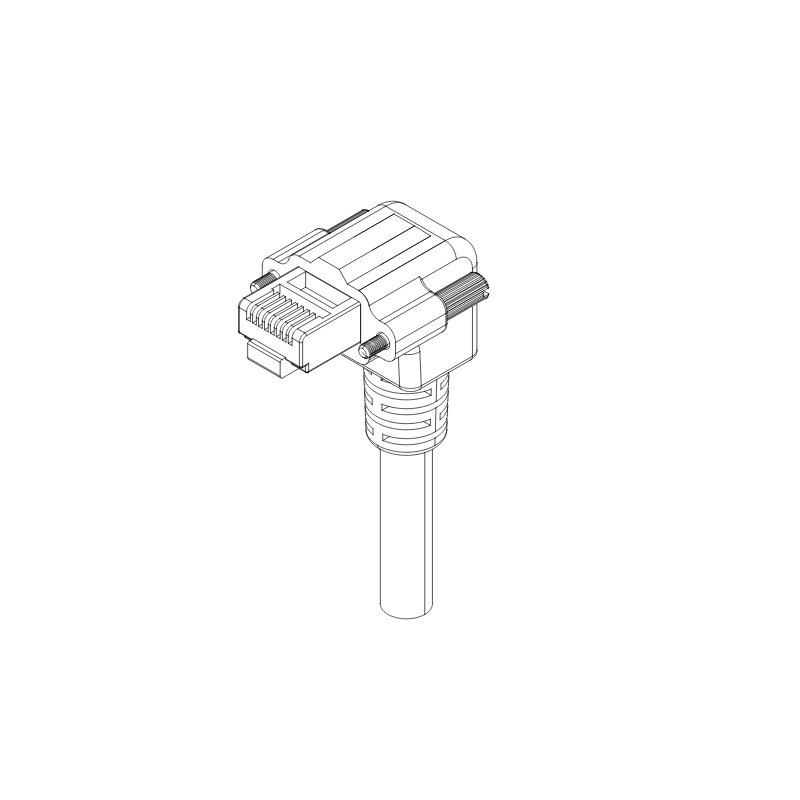

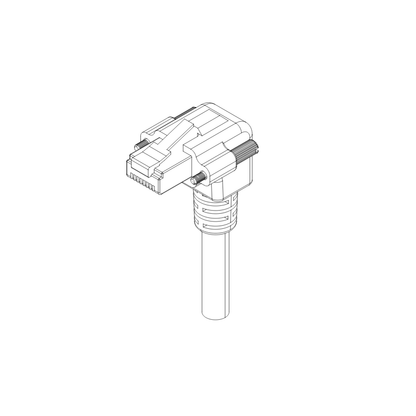

•  RJ45 Down Angle with Screws

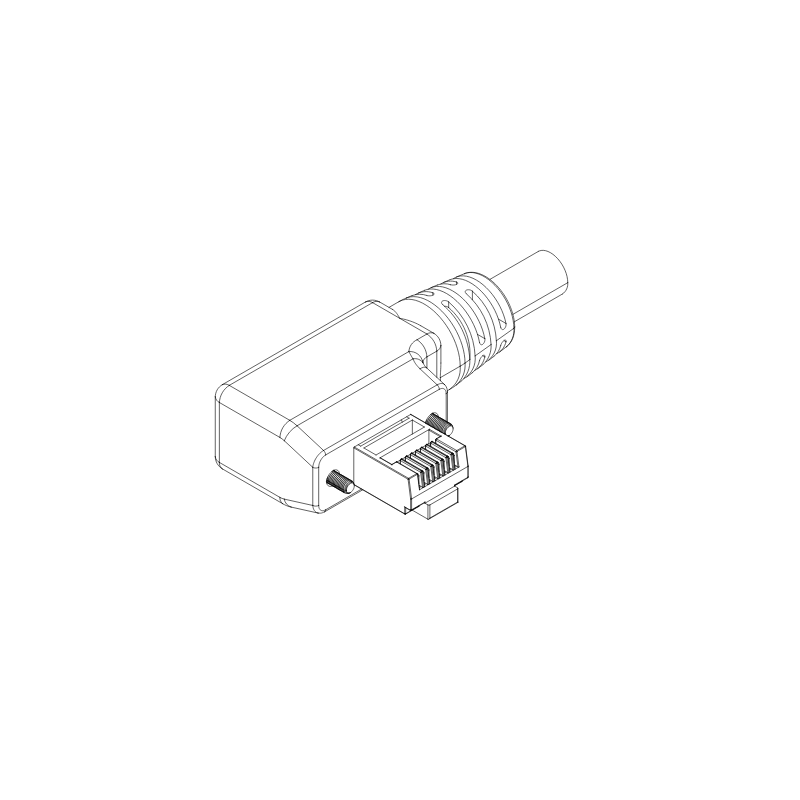

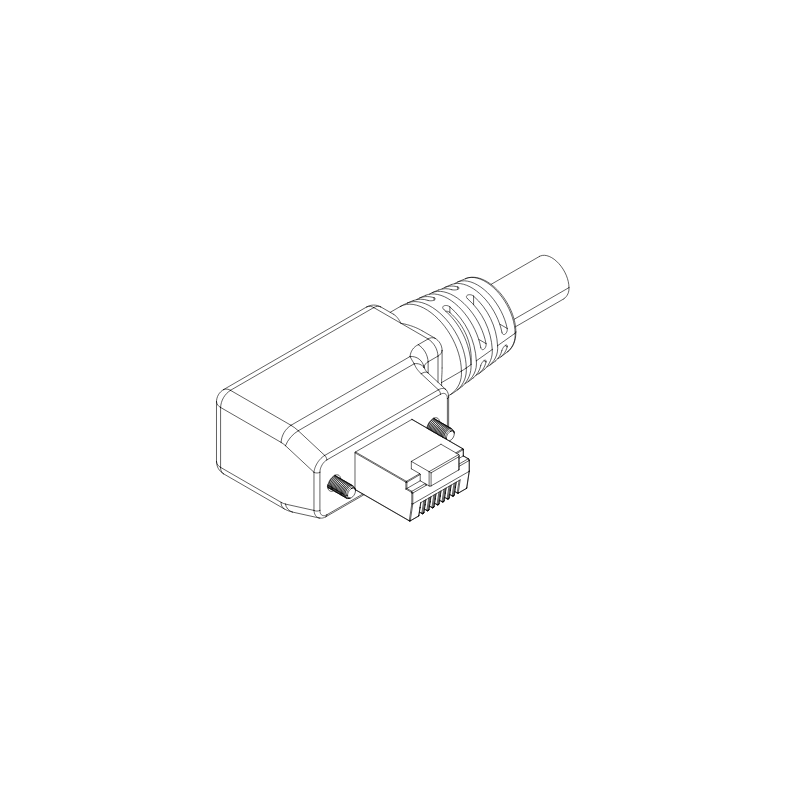

•  RJ45 Right Angle with Screws

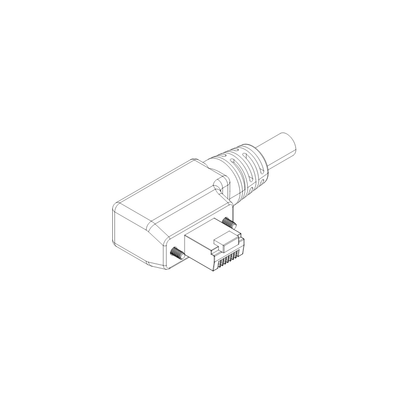

•  RJ45 Left Angle with Screws

Available Cable Types:
•  High-End Static Cable
•  High-Flex Cable


GET 10% OFF for Quick Cable Configuration

You can order this product through "Quick Cable Configuration". Click the button below to get started.

For more requests, please email us at: support.tw@comoss.com

Delivery Time

• In-stock items: shipped within 24 hours
• Lead time: 13–17 business days, excluding public holidays.
• Lead times may be extended if the products are manufactured outside Taiwan.
• This product is currently available for delivery within Taiwan only.

General Specifications

• Complies with Cat.6A specifications and supports network transmission speeds of up to 10 Gbps
• Exposed RJ45 Plug Length: 10.2 mm
• OD: 6.5 mm for High End Static cable; 6.8 mm for High Flex cable
• Assembly Method: PVC molding on both RJ45 plugs
• Cable Color & Material: BLACK & PVC
• Length for Online Order: 1–10 m
• All parts comply with RoHS 2
• Flammability rating of the plastic housing of the connectors, case & cable jacket: UL 94 V-1

View full details

Product Features and Specifications

Features

1. Advanced Interference Protection: Effectively reduces external electromagnetic interference (EMI) and alien crosstalk.
2. Locking Mechanism: RJ45 connectors are available with latch or screw-locking options, providing a secure, vibration-resistant connection in dynamic operating environments.
3. Supports stable long-distance transmission, the maximum length reach 80 m. For cable lengths exceeding 10 m, please contact us for further information.
4. Backward compatible with Cat.5e and Cat.6
5. Suitable for direct connection to routers, network switches, servers, network-attached storage (NAS), and industrial PCs (IPCs)
6. Compatible Cameras: Basler ace 2 Pro series, Teledyne DALSA Genie Nano series

Specifications


  Connector Interface   RJ45
  Category   Cat.6A
  Rated Power   15 W
  Max. Length   80 m
  Operation and Storage Temperature
Operation Temperature   0 °C ~ 60 °C
Storage Temperature   -20 °C ~ 70 °C
  Operation and Storage Humidity
Operation Humidity   10% ~ 90%
Storage Humidity   10% ~ 90%

Applications

1. Data Centers
2. Industrial Automation
• Surveillance Systems
• Automated Optical Inspection (AOI)
• Vision Inspection Applications
• Vision-Guided Positioning Applications
• Object Measurement and Sorting Applications
3. Smart Factories and AI Vision Systems

Read Product Knowledge

Certifications

FAQ

1. What are the maximum transmission speed and available cable lengths?

This Cat.6A cable supports data transmission speeds of up to 10 Gbps; the maximum length is 80 m. Cable length available to order is from 1 to 10 meters; over 10 m, please get in touch with us.

2. What is the difference between Cat.6A and Cat.5e cables?

Cat.6A provides higher transmission speeds, greater bandwidth, and better interference resistance, making it suitable for high-speed data and high-resolution image transmission.

3. What is the difference between High End Static and High Flex cables?

High End Static cables are suitable for fixed installations, while High Flex cables are designed for drag chains, robotic arms, and other applications involving repeated movement.

4. How should I choose the RJ45 connector type?

Choose a standard RJ45 connector for general applications, a locking type for environments with vibration, or an angled type for limited installation space or specific cable-routing requirements.

5. Is this cable compatible with different brands of GigE Vision cameras?

This cable can be used with GigE Vision cameras and industrial equipment equipped with a standard RJ45 Ethernet interface, but the equipment specifications should be checked before ordering.
