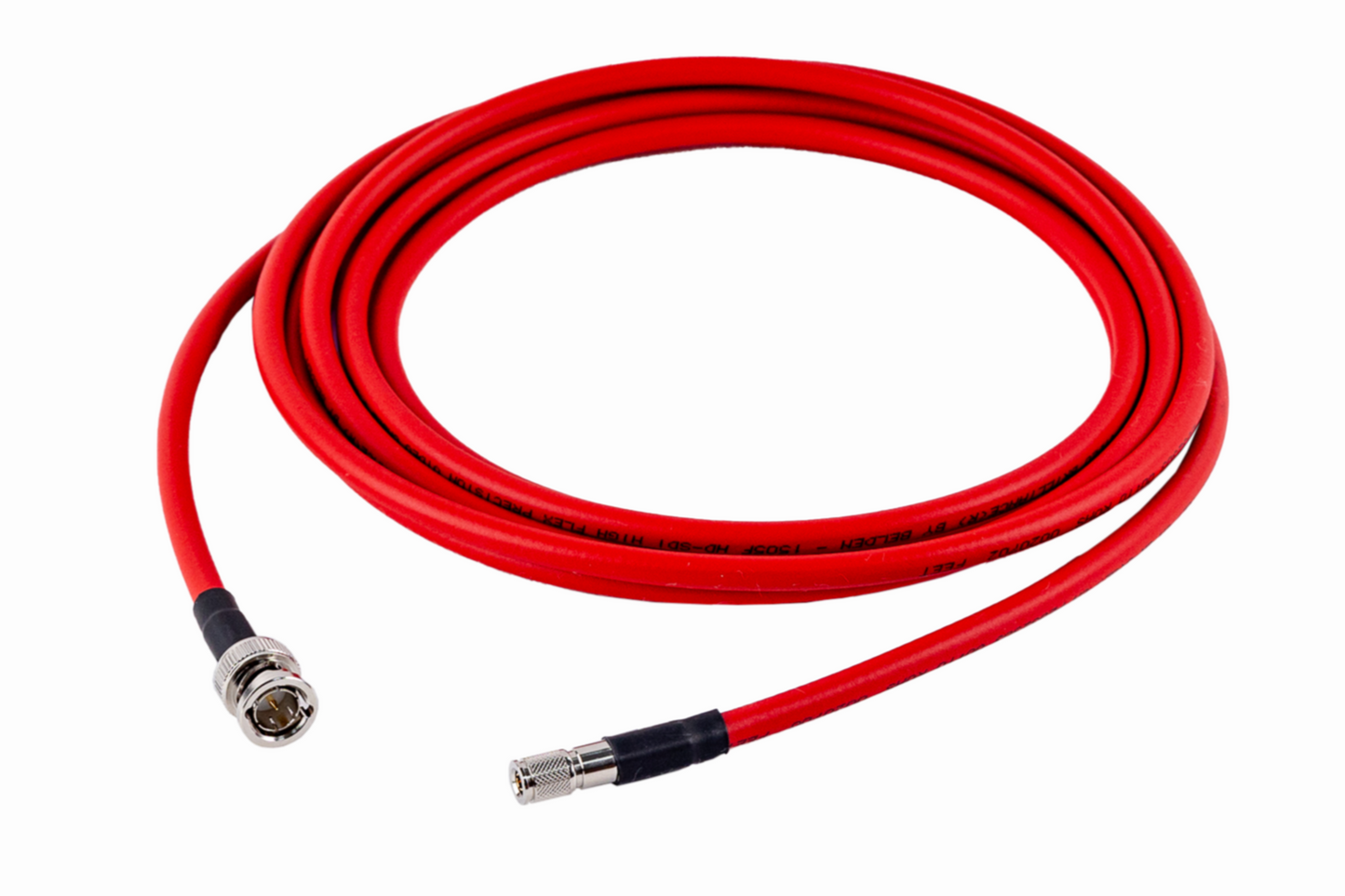

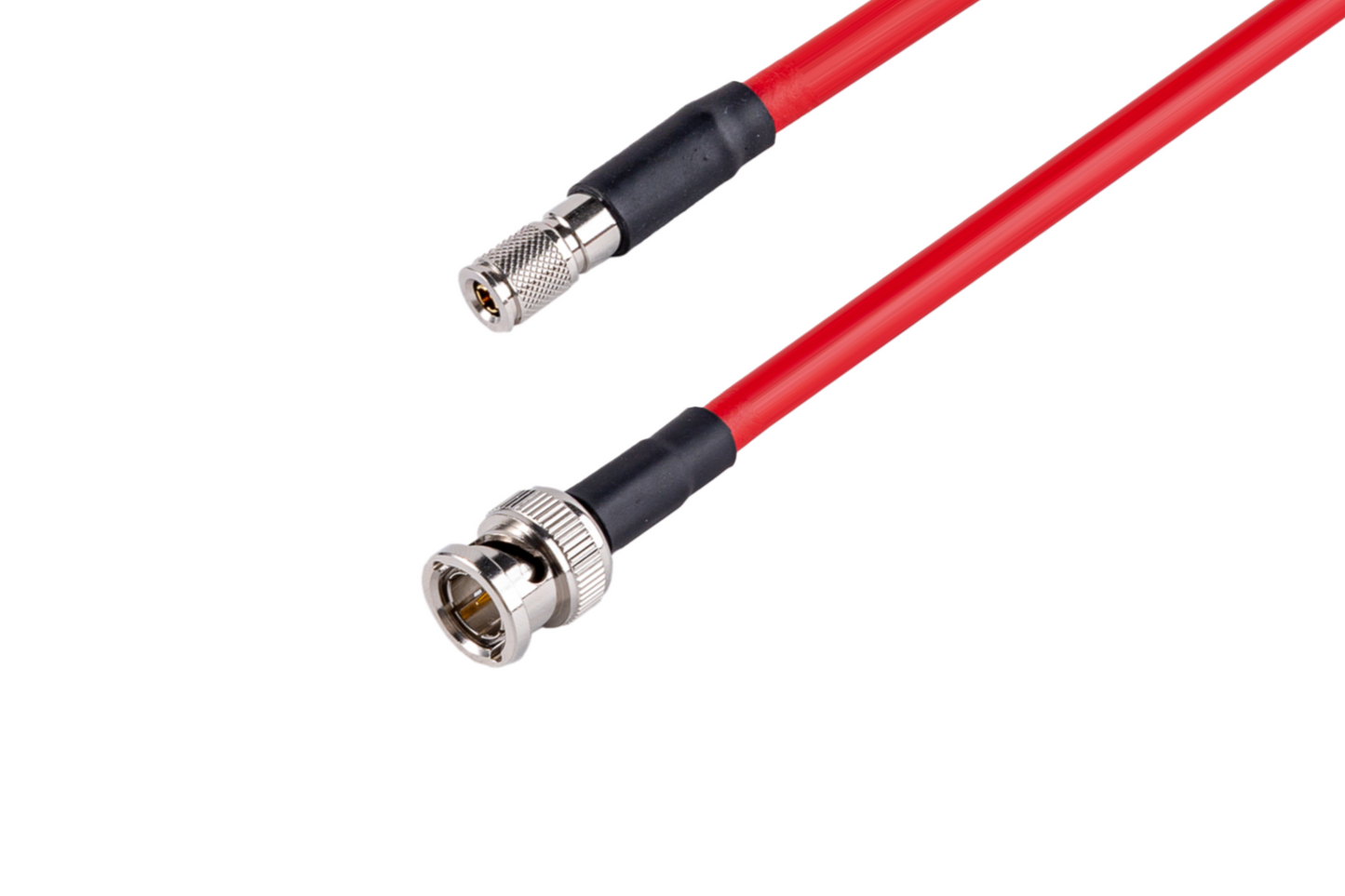

CXP-6 High Flex/BNC to DIN

CXP-6 High Flex/BNC to DIN

CXP6-B/1-D/1-xM- HF(Red,OD6.15)

Shipping only for Taiwan

$3,450.00 TWD
$3,450.00 TWD
Sale Sold out
Taxes included.
Length

Stock: 10 in stock

Transit Time

3-5 days

General Specifications

• Assembly Method: Plug assembly with heat shrinkable casing
• Cable Color & Material: RED & PVC
• Length: 3M、5M、7M、10M
• All parts comply with RoHS 2
• Flammability rating of the plastic housing of the connectors, case & cable jacket: UL 94 V-1

View full details

Product Features and Specifications

Features

1. Specifically designed for industrial cameras and machine vision systems
2. Comply with CoaXPress V1.1 CXP-6 which data transfer speeds up to 6.125 Gbps
3. Maximum transmission distance reaches 20 m
4. RoHS / REACH / UL compliant
5. This product offers diverse length, shielding, color and angled connector options. ( For customized service, please fill out the inquiry form in Contact Us page. We will reply you soon.)

Specifications

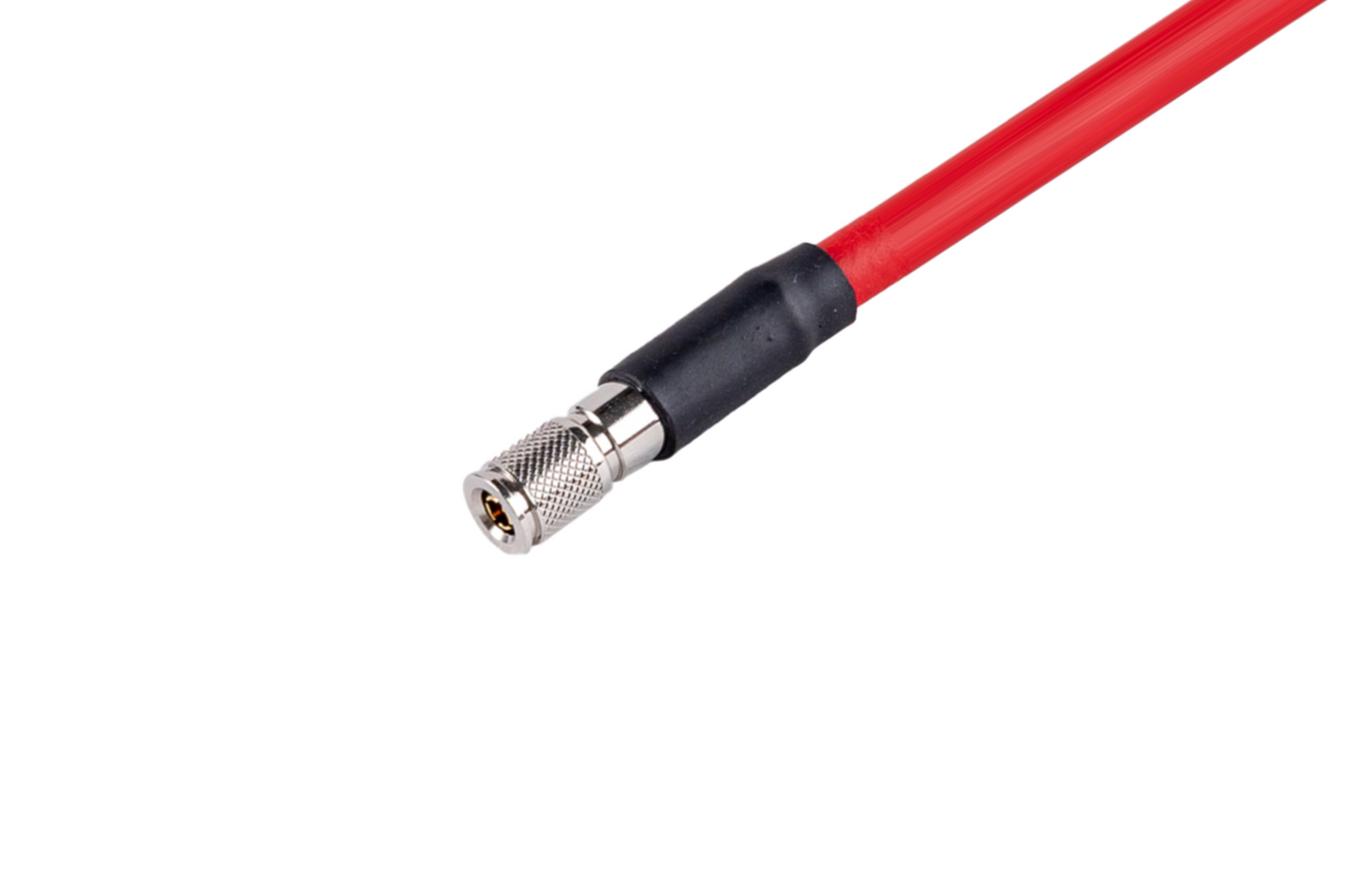

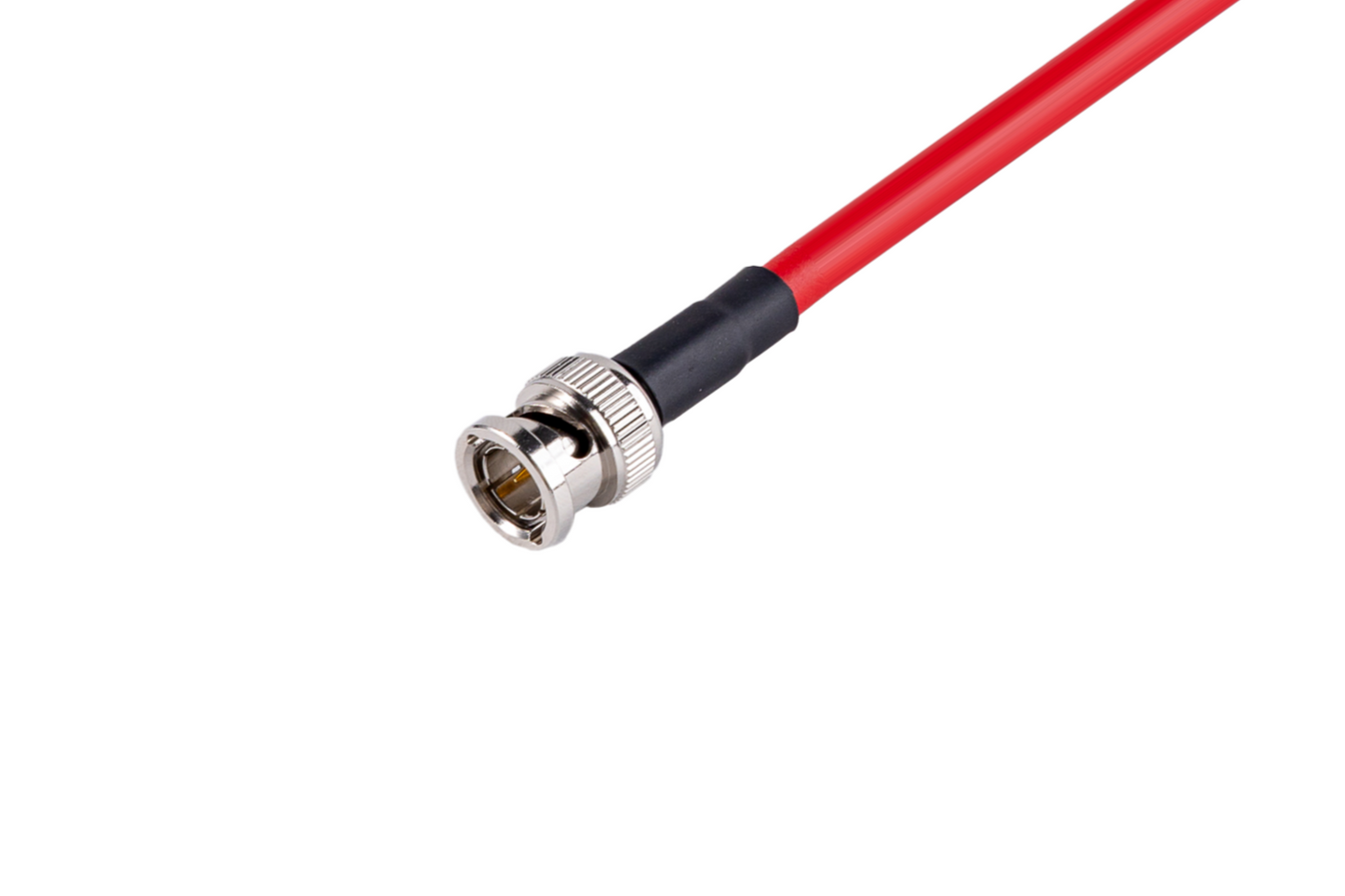

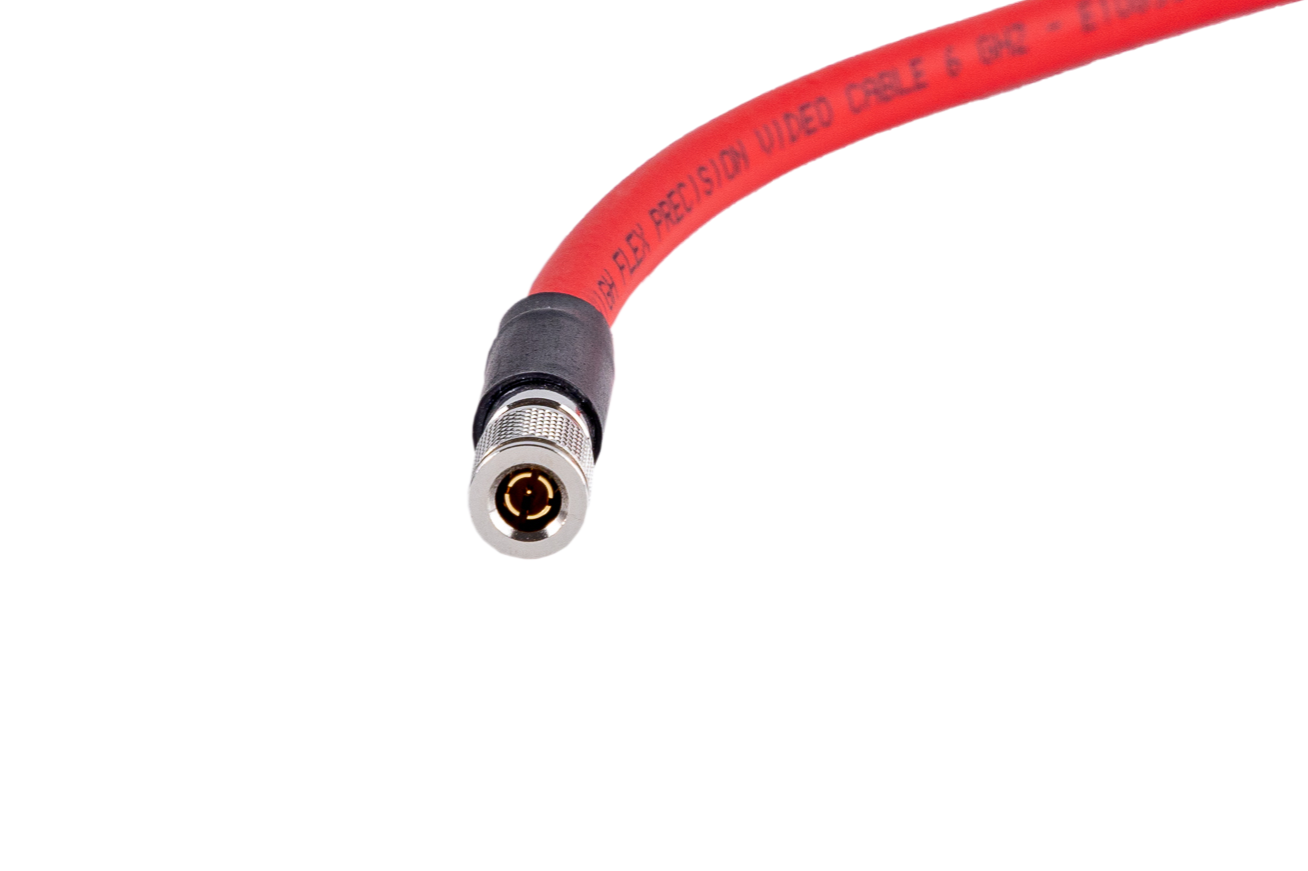

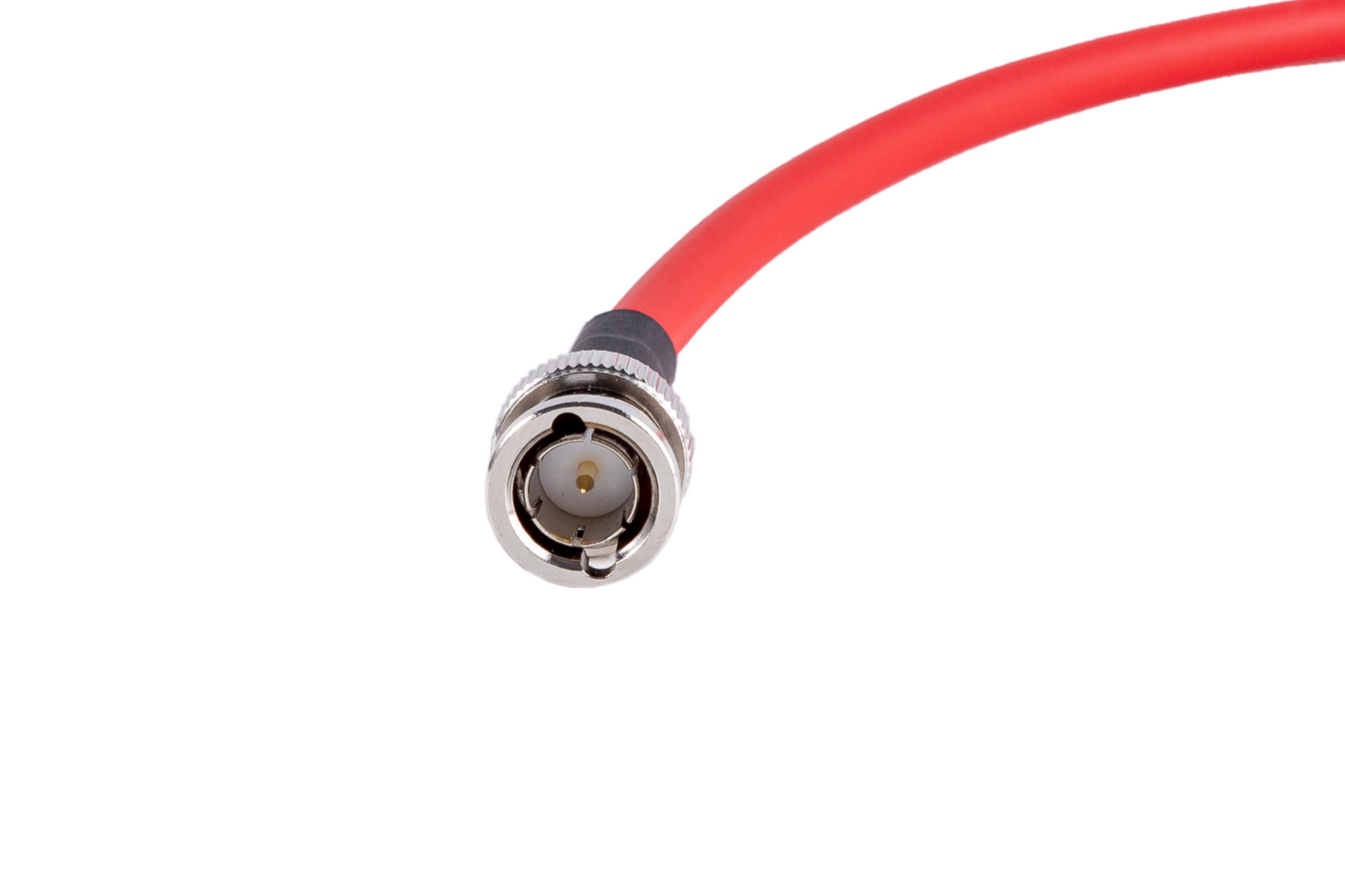

  Connector Interface   BNC / DIN 1.0 / 2.3
  CXP Speed   CXP-6
  Rated Power   13W
  Max. Length   20m
  Operation and Storage Temperature
Operation Temperature   0 °C to 60 °C
Storage Temperature   -20 °C to 70 °C
  Operation and Storage Humidity
Operation Humidity   10% ~ 90%
Storage Humidity   10% ~ 90%

Applications

1. Automatic optical inspection
2. Image inspection application
3. Visual positioning application
4. Object measurement/ Sorting application
