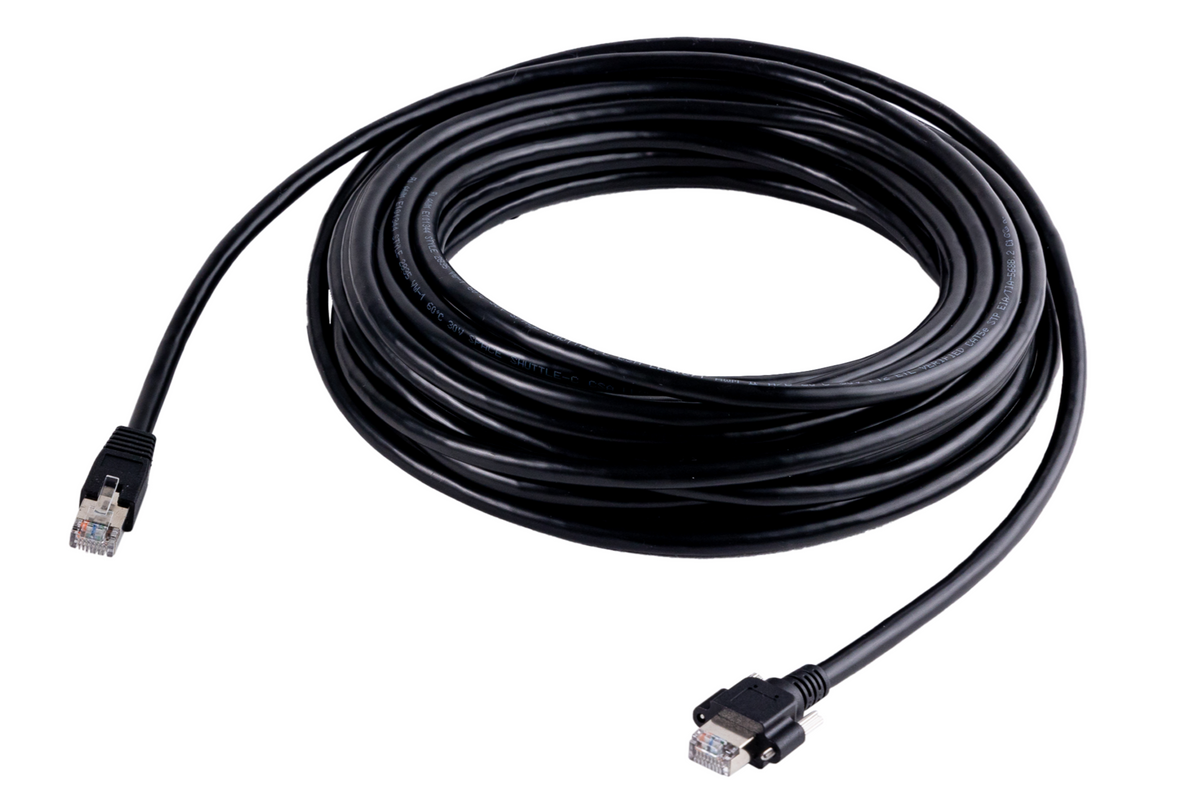

GigE Cat.5e RJ45 Cable

GigE Cat.5e RJ45 Cable

Provides stable and cost-effective data transmission for general machine vision, industrial cameras, equipment networking, and automated production lines.


Available Connector:

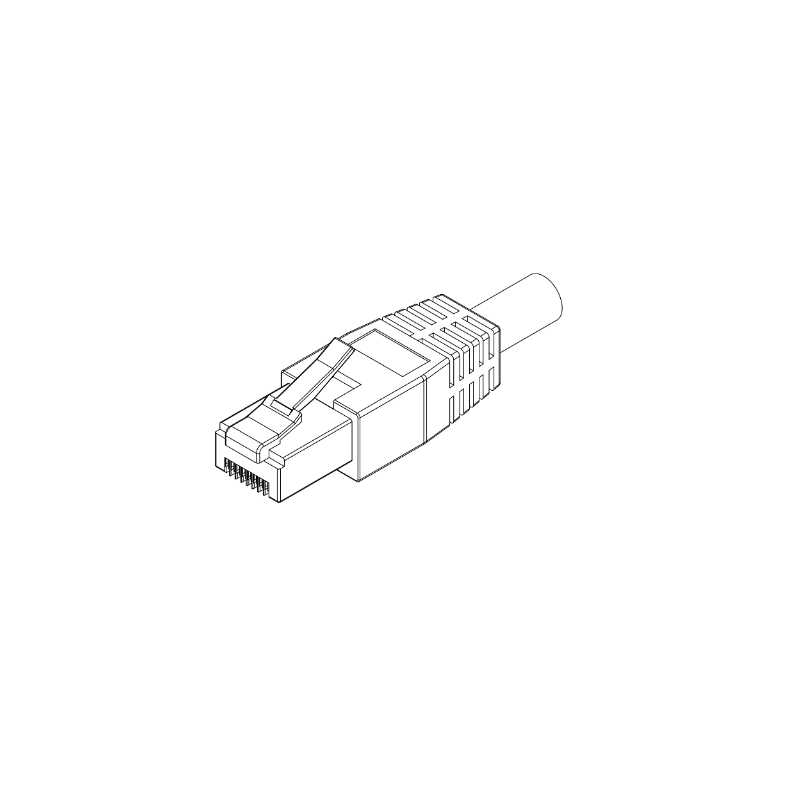

•  RJ45

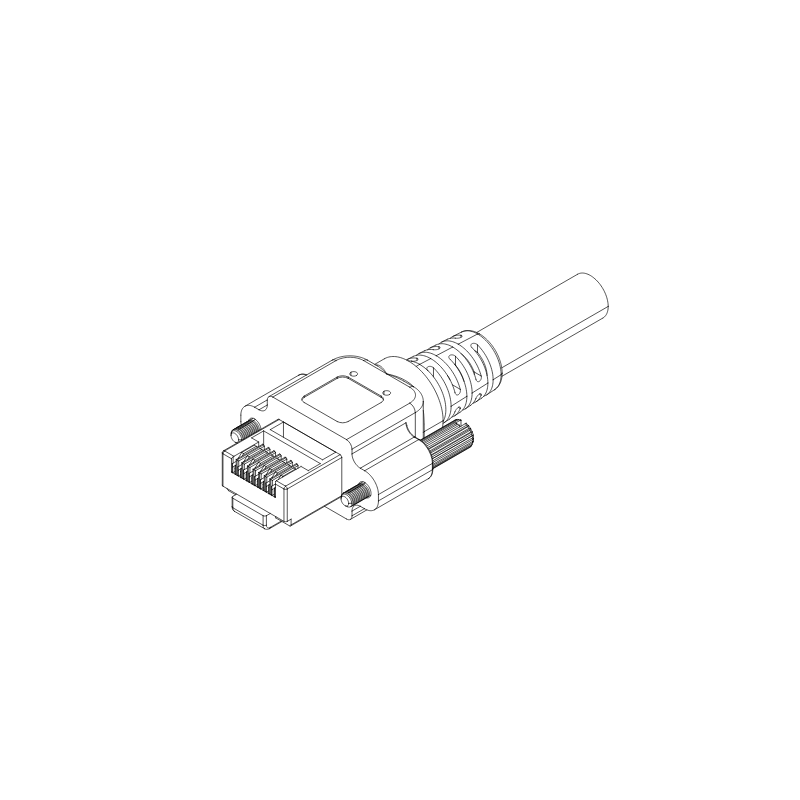

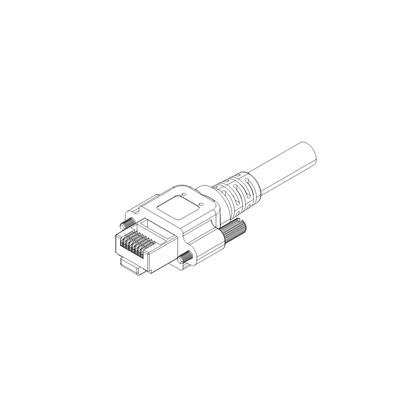

•  RJ45 with Screws

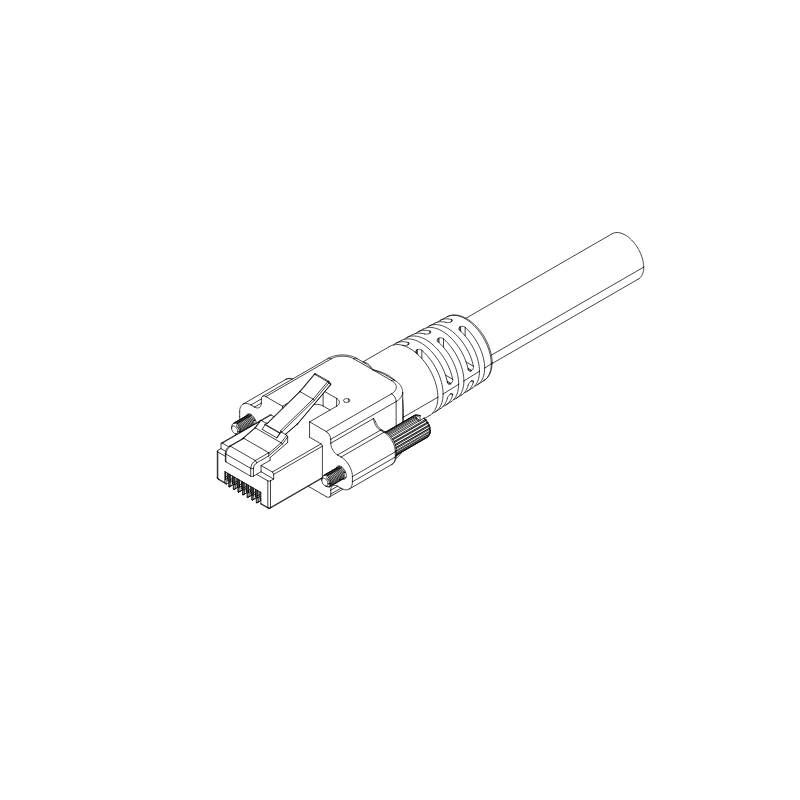

•  RJ45 with Screws & Latch

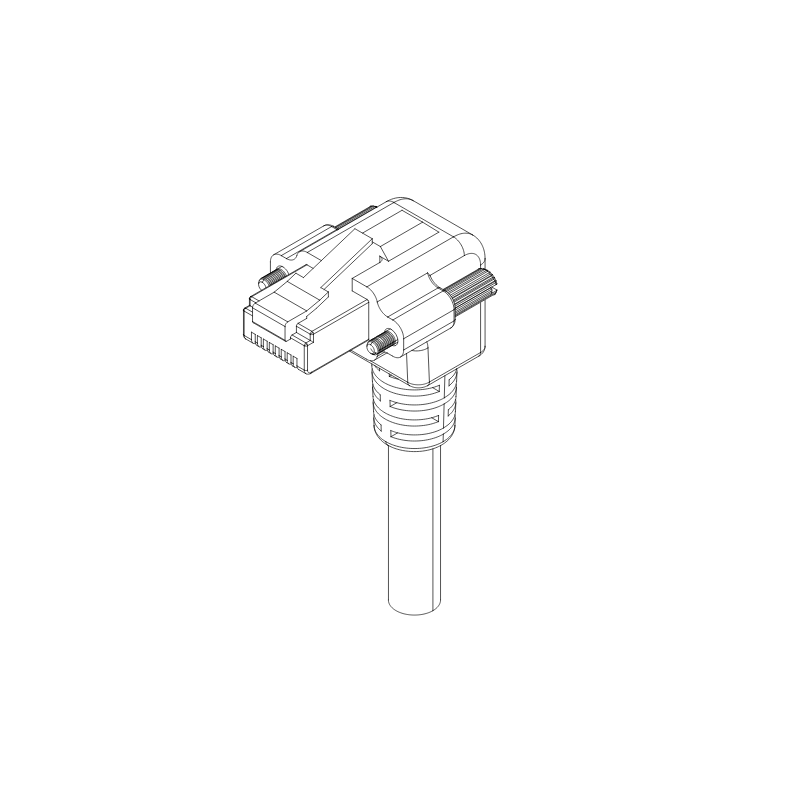

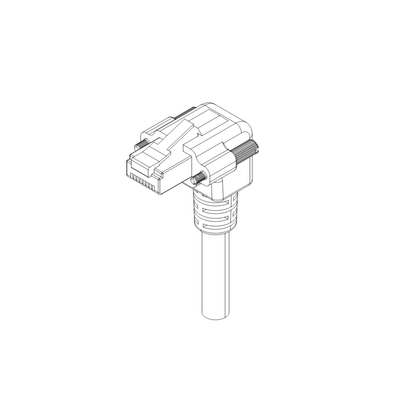

•  RJ45 Up Angle with Screws

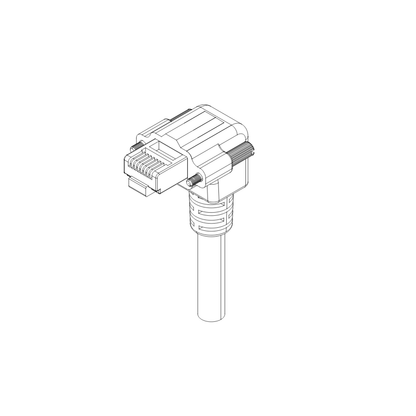

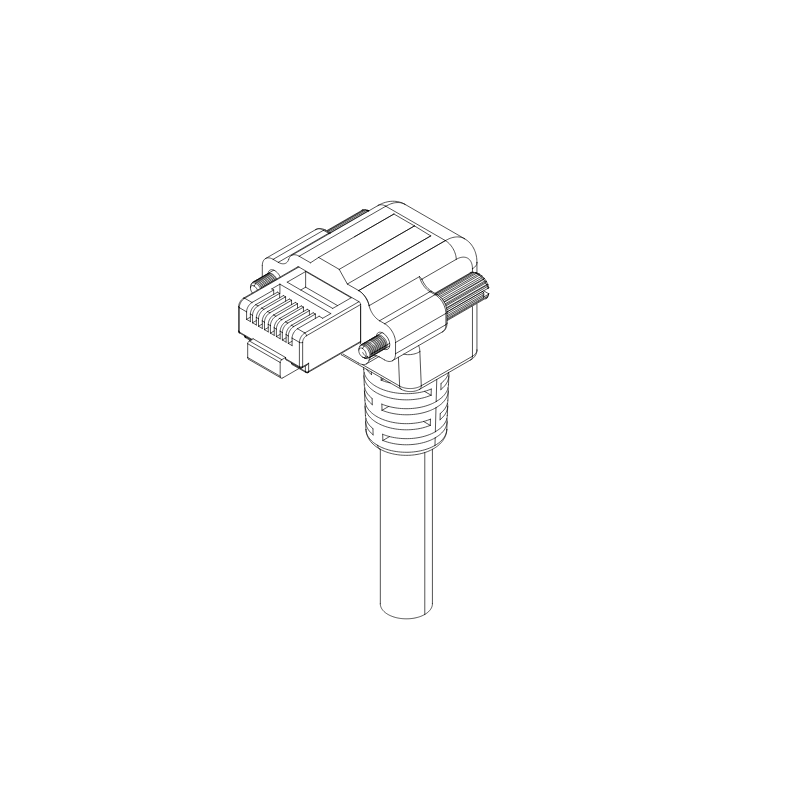

•  RJ45 Down Angle with Screws

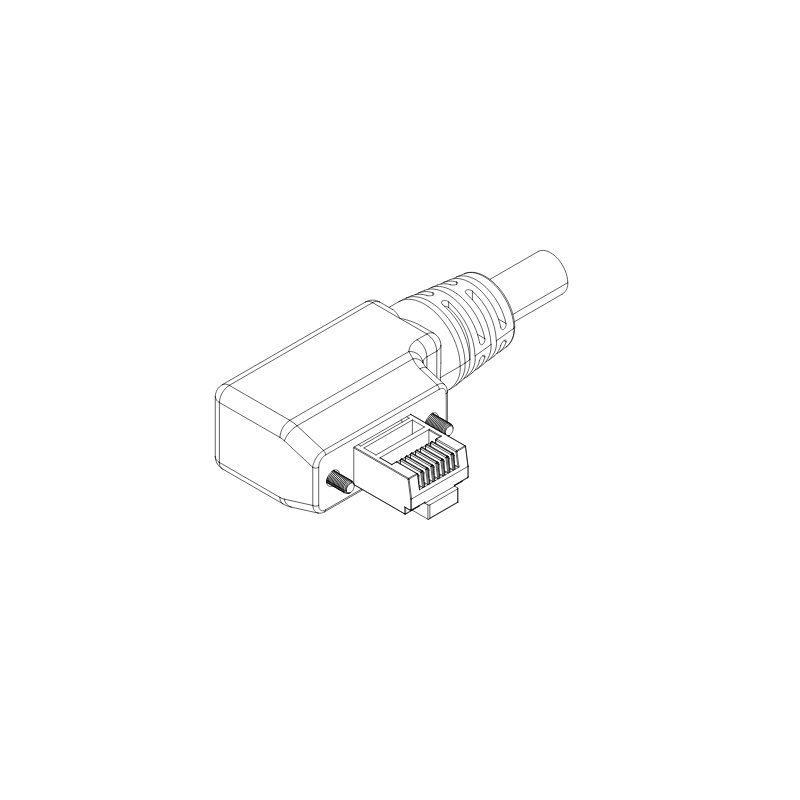

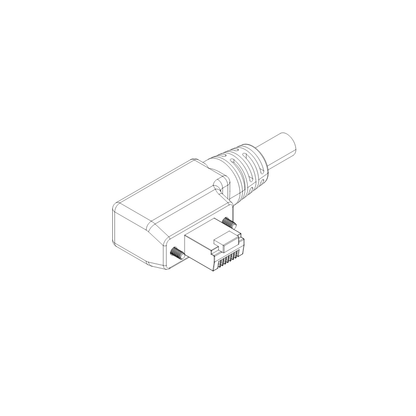

•  RJ45 Right Angle with Screws

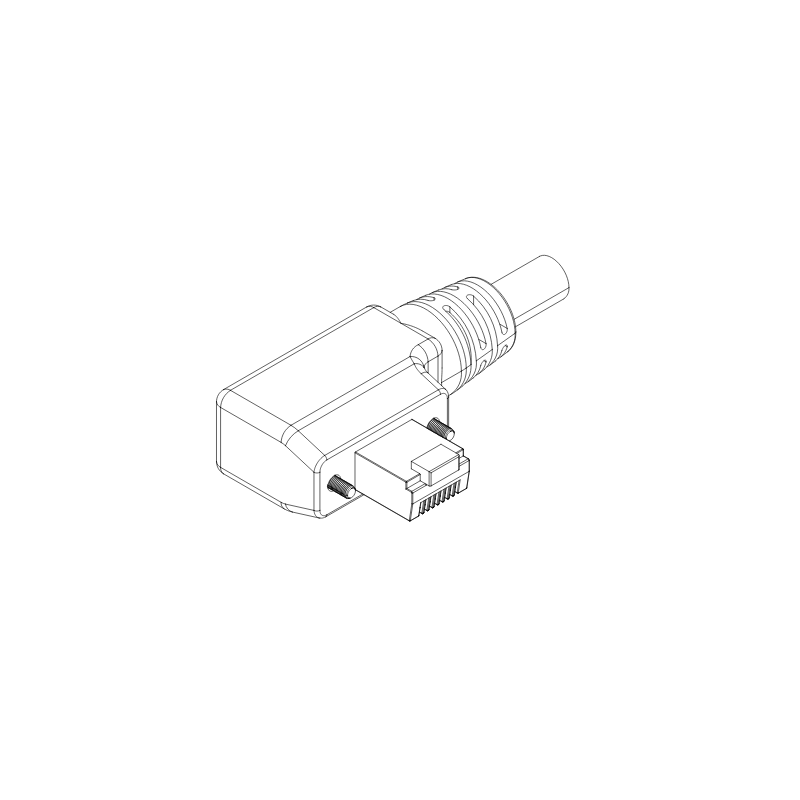

•  RJ45 Left Angle with Screws

Available Cable Types:
•  High-End Static Cable
•  High-Flex Cable

GET 10% OFF for Quick Cable Configuration.

You can order this product through "Quick Cable Configuration". Click the button below to get started.

For more requests, please email us at: support.tw@comoss.com

Delivery Time

• In-stock items: shipped within 24 hours
• Lead time: 13–17 business days, excluding public holidays.
• Lead times may be extended if the products are manufactured outside Taiwan.
• This product is currently available for delivery within Taiwan only.

General Specifications

• Complies with Cat.5e standards and supports Gigabit Ethernet transmission at up to 1 Gbps.
• Exposed RJ45 Plug Length: 10.2 mm
• OD: 6.5 mm for High End Static cable; 6.8 mm for High Flex cable
• Assembly Method: PVC molding on both RJ45 plugs
• Cable Color & Material: BLACK & PVC
• Length for Online Order: 1–10 m
• All parts comply with RoHS 2
• Flammability rating of the plastic housing of the connectors, case & cable jacket: UL 94 V-1

View full details

Product Features and Specifications

Features

1. Locking Mechanism: RJ45 connectors are available with latch or screw-locking options, providing a more secure and vibration-resistant connection in dynamic operating environments.
2. Supports stable long-distance transmission, the maximum length reach 80 m. For cable lengths exceeding 10 m, please get in touch with us for further information.
3. Compatible Devices such as Routers, network switches, computers, network-attached storage (NAS), and industrial PCs (IPCs).
4. Compatible Cameras: Basler ace series, Hikrobot MV-CA series.

Specifications


  Connector Interface   RJ45
  Category   Cat.5e
  Rated Power   15 W
  Max. Length   80 m
  Operation and Storage Temperature
Operation Temperature   0 °C ~ 60 °C
Storage Temperature   -20 °C ~ 70 °C
  Operation and Storage Humidity
Operation Humidity   10% ~ 90%
Storage Humidity   10% ~ 90%

Applications

1. Surveillance system
2. Automatic optical inspection
3. Image inspection application
4. Visual positioning application
5. Object measurement/ Sorting application

Read Product Knowledge

Certifications

FAQ

1. What is the maximum transmission speed and cable length?

This Cat.5e cable supports transmission speeds of up to 1 Gbps and cable lengths of up to 80 meters.

2. What is the difference between High End Static and High Flex cables?

High End Static cables are designed for fixed installations, while High Flex cables are suitable for drag chains, robotic arms, and applications involving repeated movement.

3. How should I choose the RJ45 connector type?

Choose a standard RJ45 connector for general use, a locking type for vibration resistance, or an angled type for limited installation space and specific cable-routing directions.

4. Is this cable compatible with different brands of GigE Vision cameras?

This cable is compatible with GigE Vision cameras equipped with a standard RJ45 Ethernet interface, but the equipment specifications should be checked before ordering.

5. What are the minimum order quantity and lead time?

The order quantities are from 1 to 10. The production lead time for custom cable is 10-12 working days, and the delivery time is 3-5 days. In-stock products ship within 24 hours.
