USB3.2 ACC/Type-A to Micro-B with Screwlock

USB3.2 ACC/Type-A to Micro-B with Screwlock

USB3AC-A/1-CS/1-xM_V1.5-MD2(Blue,OD6.0)

Shipping only for Taiwan

$2,770.00 TWD
$2,770.00 TWD
Sale Sold out
Taxes included.
Length

Stock: 10 in stock

Transit Time

3-5 days

General Specifications

• Assembly Method: PVC molding on both USB plugs and repeater module
• Cable Color & Material: BLUE & PVC
• Length: 3M、5M
• All parts comply with RoHS 2
• Flammability rating of the plastic housing of the connectors, case & cable jacket: UL 94 V-1

View full details

Product Features and Specifications

Features

1. Comply with USB3.2 Gen1 SuperSpeed
2. USB 3.2 Micro-B connector with screwlock
3. BUS-powered and no external power needed
4. Embedded with buck-boost that supply devices with minimum power as 4.5V/600mA
5. Plug and play functionality and no drivers required
6. RoHS / REACH / UL compliant
7. This product offers diverse overmolding, length, shielding, color and angled connector options. ( For customized service, please fill out the inquiry form in Contact Us page. We will reply you soon.)

Specifications

  Connector Interface   Type-A / Micro-B
  USB Version   USB3.2 Gen1
  Rated Power   5V / 0.9A
  Max. Length   15m
  Operation and Storage Temperature
Operation Temperature   0 °C to 60 °C
Storage Temperature   -20 °C to 70 °C
  Operation and Storage Humidity
Operation Humidity   10% ~ 90%
Storage Humidity   10% ~ 90%

Applications

1. Automatic optical inspection
2. Image inspection application
3. Visual positioning application
4. Object measurement/ Sorting application

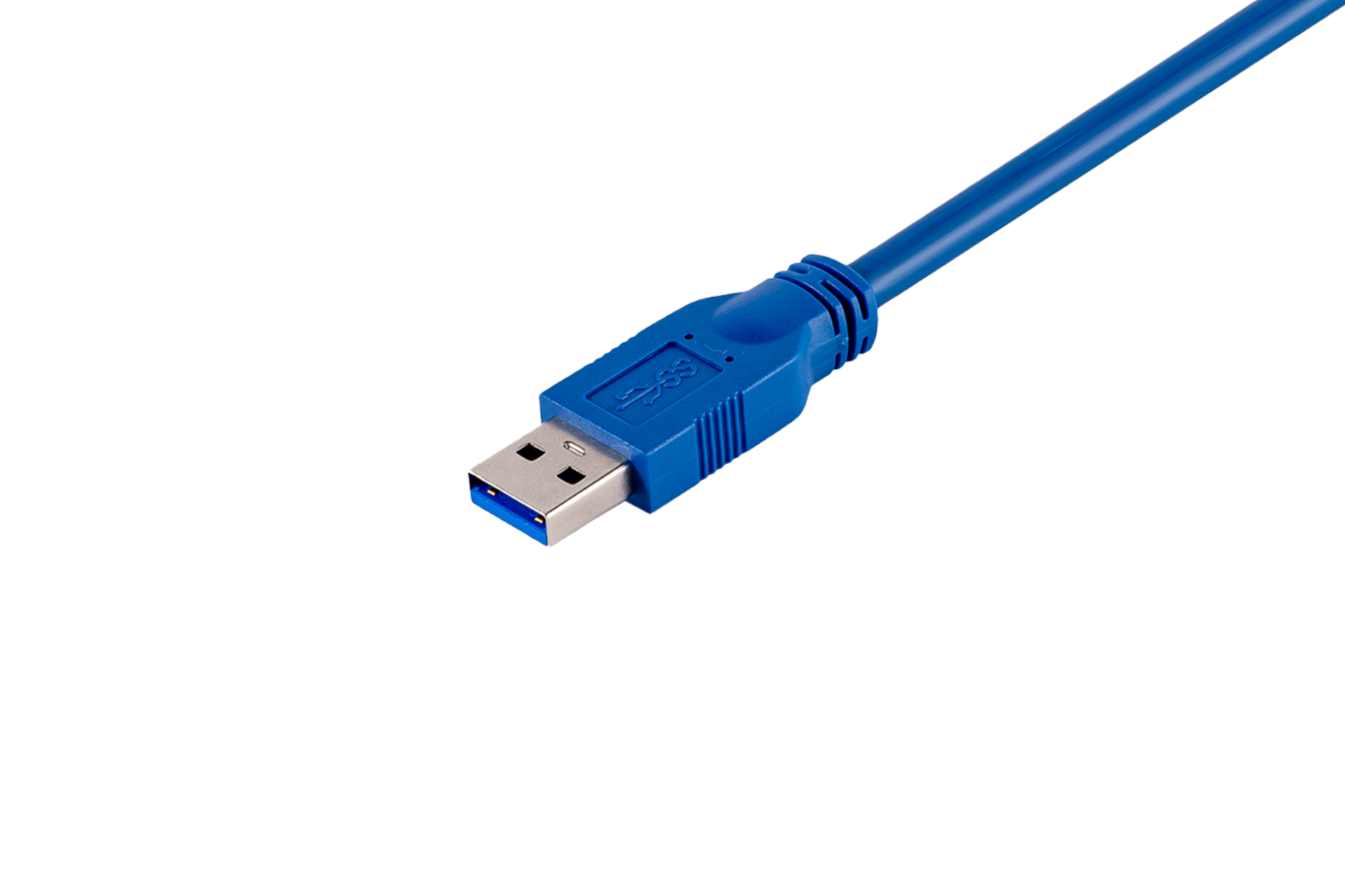

Front View of Connector

Certifications
