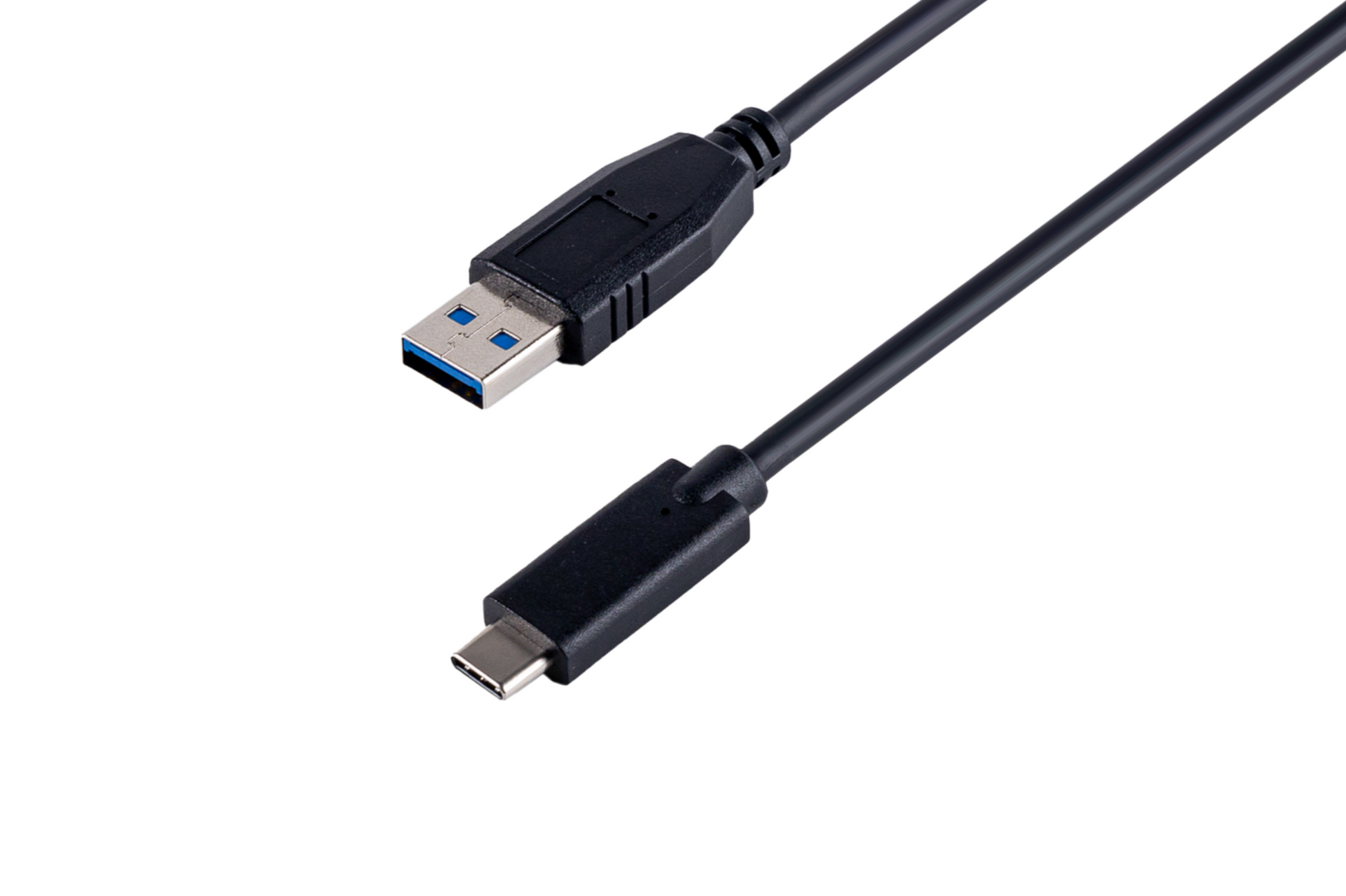

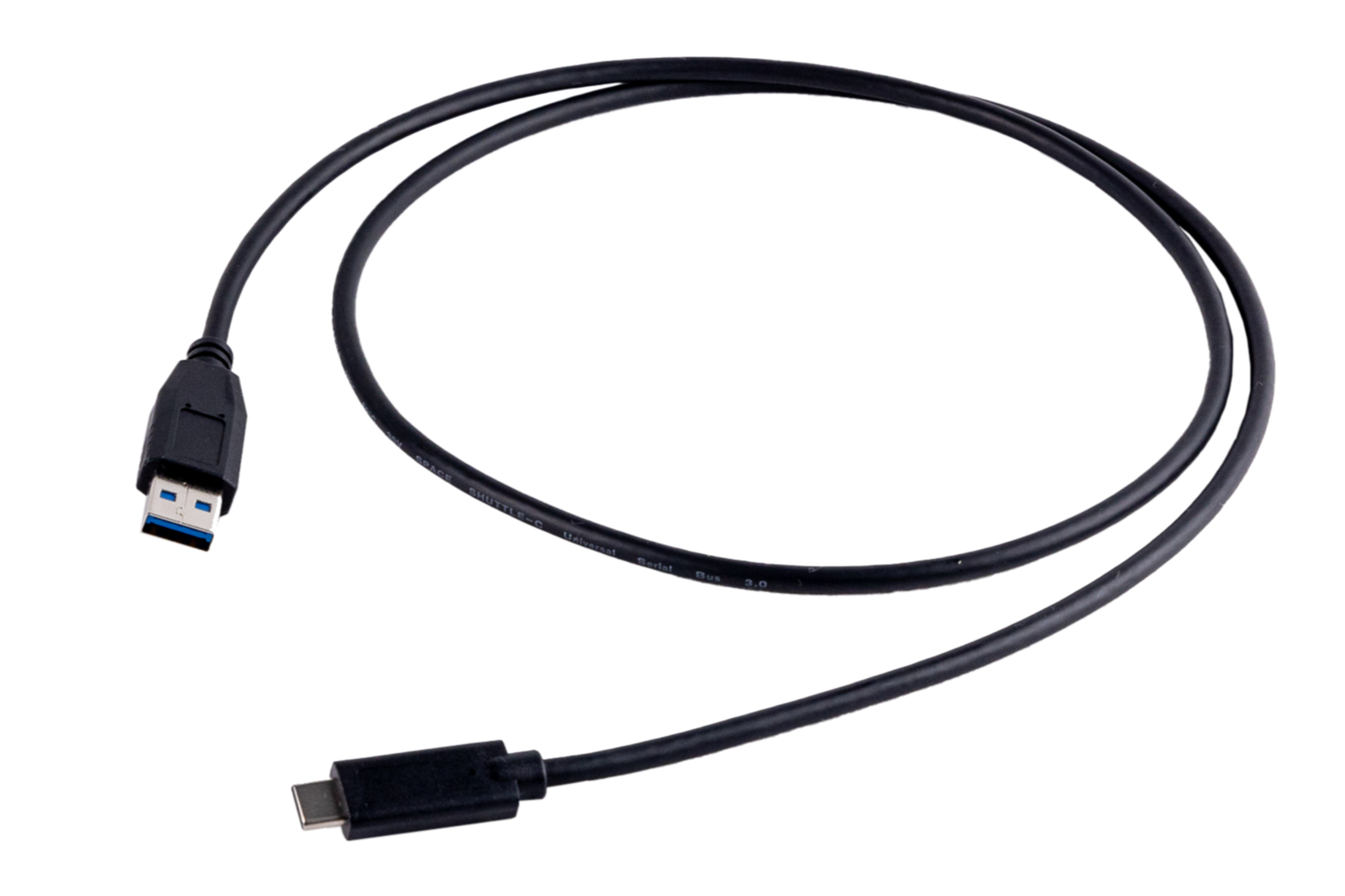

USB3.2/Type-A to Type-C

USB3.2/Type-A to Type-C

USB3C-A/1-TC/1-xM(Black,OD4.2,Gen1)

Shipping only for Taiwan

$930.00 TWD
$930.00 TWD
Sale Sold out
Taxes included.
Length

Stock: 9 in stock

Transit Time

3-5 days

General Specifications

• Assembly Method: PVC molding on both USB plugs
• Cable Color & Material: BLACK & PVC
• Length: 1M、3M、5M
• All parts comply with RoHS 2
• Flammability rating of the plastic housing of the connectors, case & cable jacket: UL 94 V-1

View full details

Product Features and Specifications

Features

1. Comply with USB 3.2 Gen1 SuperSpeed & Backwards compatible with USB2.0
2. USB Type-C connector
3. RoHS / REACH / UL compliant
4. This product offers diverse overmolding, length, shielding, color and angled connector options. ( For customized service, please fill out the inquiry form in Contact Us page. We will reply you soon.)

Specifications

  Connector Interface   Type-A / Type-C
  USB Version   USB3.2 Gen1
  Rated Power   5V / 0.9A
  Max. Length   5m
  Operation and Storage Temperature
Operation Temperature   0 °C to 60 °C
Storage Temperature   -20 °C to 70 °C
  Operation and Storage Humidity
Operation Humidity   10% ~ 90%
Storage Humidity   10% ~ 90%

Applications

1. Automatic optical inspection
2. Image inspection application
3. Visual positioning application
4. Object measurement/ Sorting application

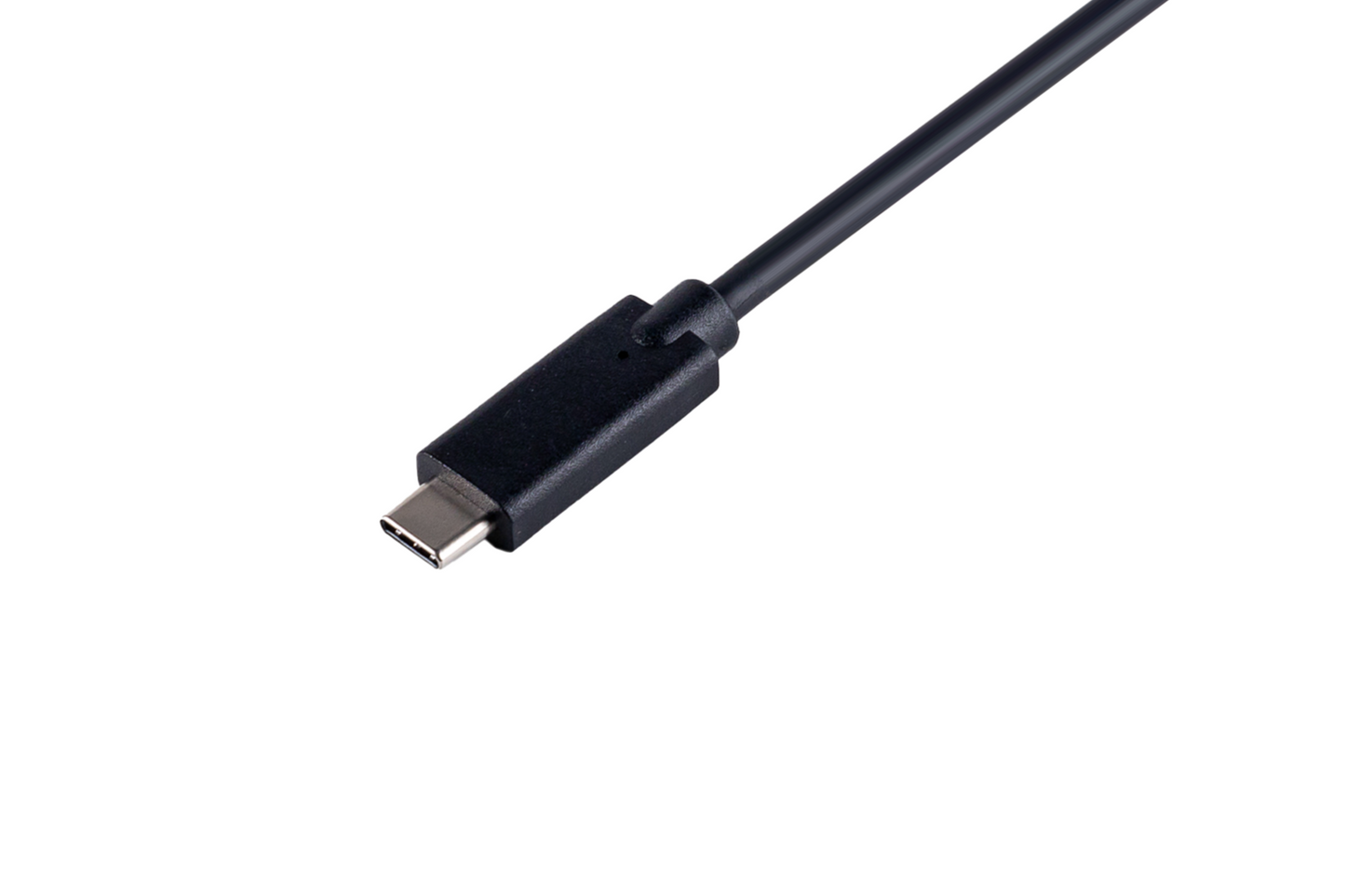

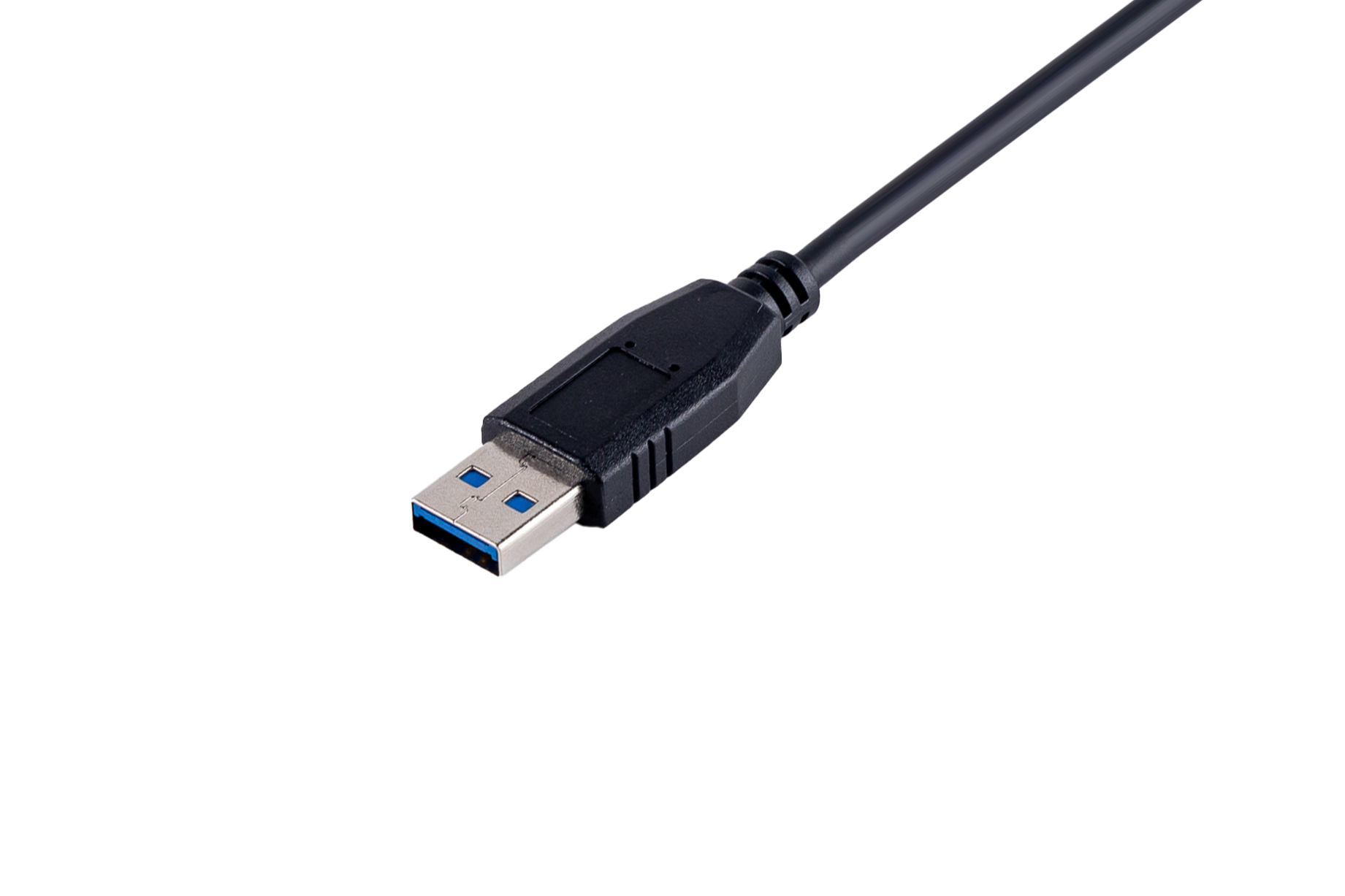

Front View of Connector

Certifications
